Front Bumper Cover: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Remove the front wheels and tires. Refer to: Wheel and Tire .

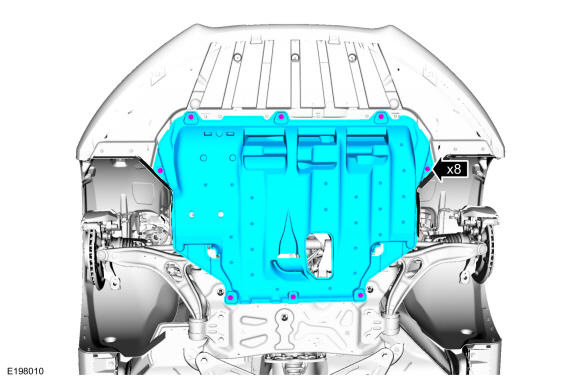

Remove the retainers and the underbody shield.

Courtesy of FORD MOTOR COMPANY

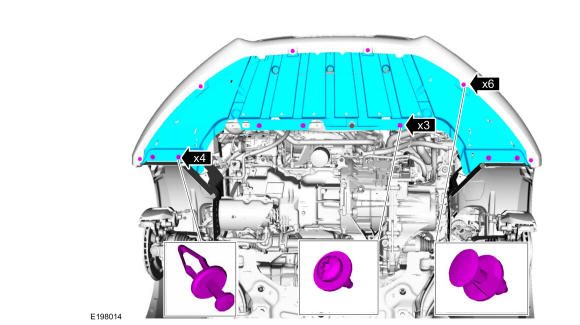

Remove the pin-type retainers, the screws and the lower radiator air deflector.

Courtesy of FORD MOTOR COMPANY
NOTE: On both sides.

Remove the screws and position the fender liner aside.

Courtesy of FORD MOTOR COMPANY

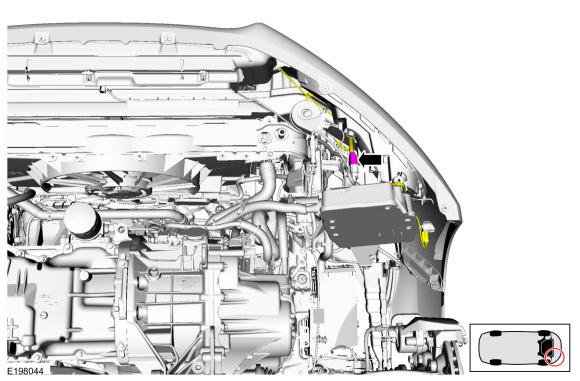

Disconnect the front bumper cover wiring harness electrical connector.

Courtesy of FORD MOTOR COMPANY
NOTE: On both sides.

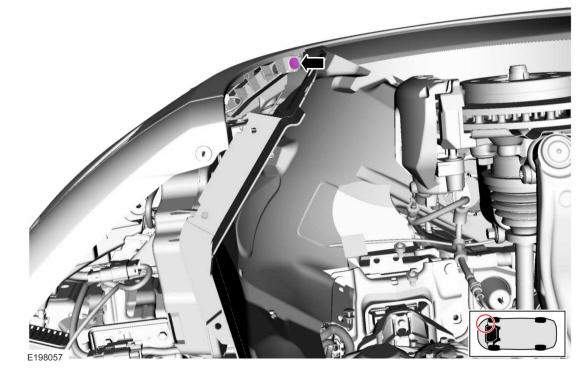

Remove the push pin.

Courtesy of FORD MOTOR COMPANY
NOTE: On both sides.

Remove the front bumper cover to fender bolts.

Courtesy of FORD MOTOR COMPANY
Remove the headlamp assembly. Refer to: Headlamp Assembly .

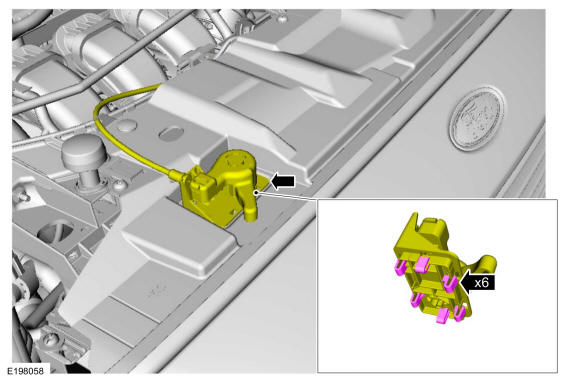

Release the tabs and position the hood lock handle aside.

Courtesy of FORD MOTOR COMPANY

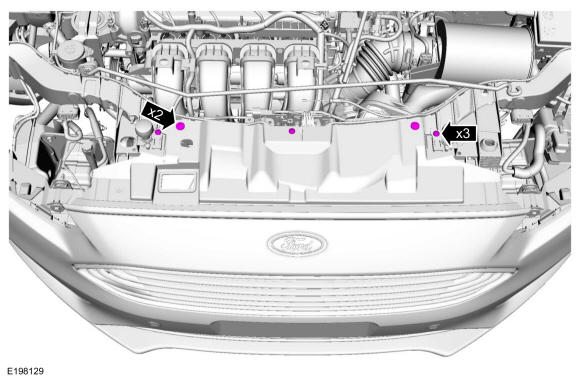

Remove the front bumper cover push pins and the screws.
Torque

: 35 lb.in (4 Nm)

Courtesy of FORD MOTOR COMPANY

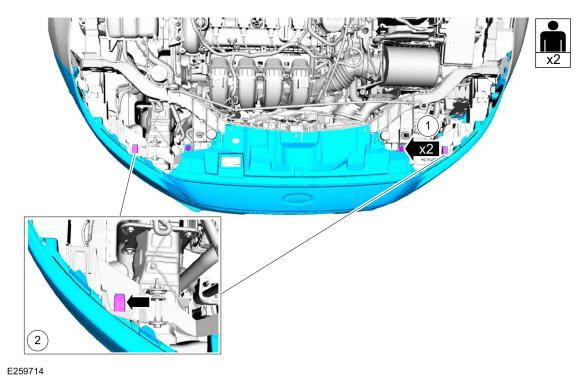

With the help of an assistant.
1. Remove the front bumper cover screws.
  Torque

  : 35 lb.in (4 Nm)
2. Release the tabs and remove the front bumper cover.

Courtesy of FORD MOTOR COMPANY
