Front Bumper Cover - RS: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the front wheel and tire assemblies. Refer to: Wheel and Tire .
Remove the headlamp assembly. Refer to: Headlamp Assembly .

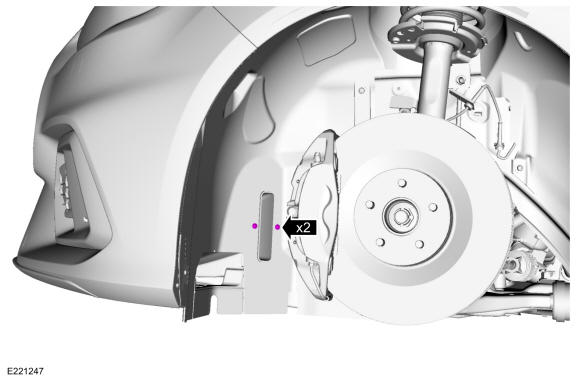

On both sides. Remove the screws.

Courtesy of FORD MOTOR COMPANY
On both sides. Remove the fender liner screws and position the fender liner aside.

Courtesy of FORD MOTOR COMPANY

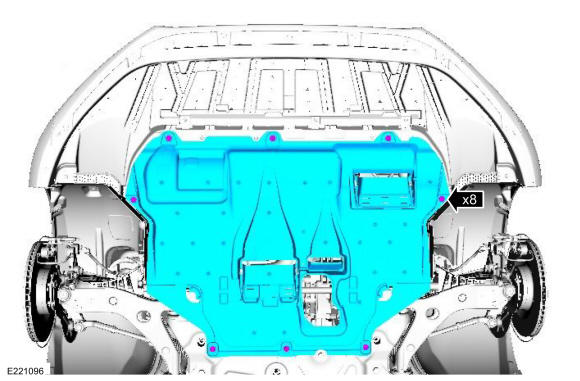

Remove the screws and the engine undershield.

Courtesy of FORD MOTOR COMPANY

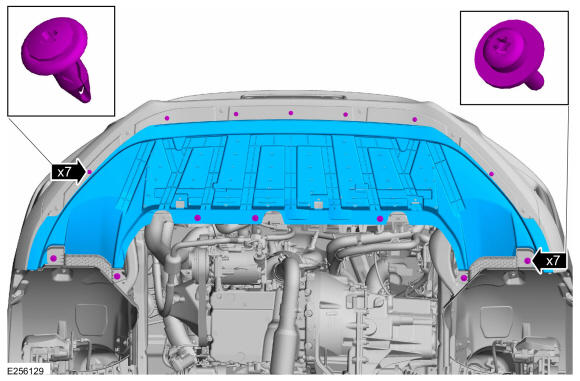

Remove the screws, the push pins and the front underbody shield.

Courtesy of FORD MOTOR COMPANY
Disconnect the front bumper cover wiring harness electrical connector.

Courtesy of FORD MOTOR COMPANY
On both sides. Remove the front bumper cover bracket push pin.

Courtesy of FORD MOTOR COMPANY
On both sides. Remove the front bumper cover bracket bolts.

Courtesy of FORD MOTOR COMPANY
Release the tabs and position the hood lock handle aside.

Courtesy of FORD MOTOR COMPANY

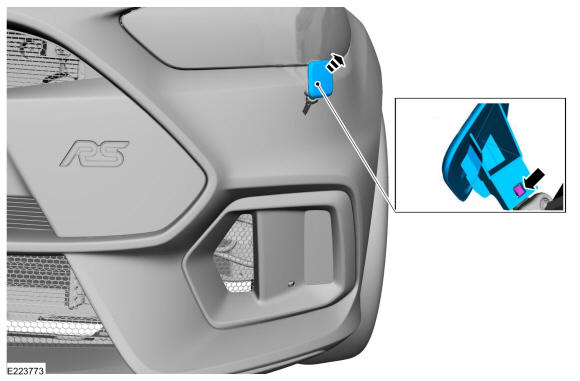

If equipped, on both sides. Release tab and remove the headlamp washer jet cap.

Courtesy of FORD MOTOR COMPANY

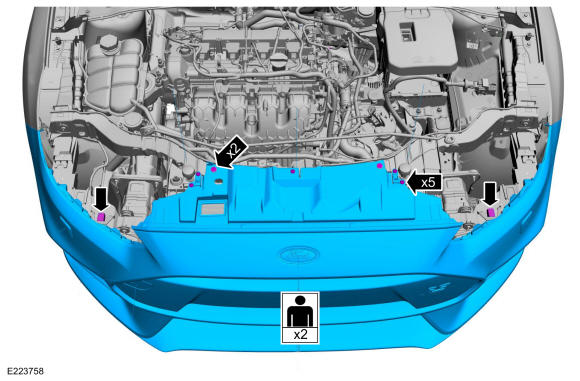

With the help of an assistant. Remove the screws, the push pins, release the tabs and remove the front bumper cover.
Torque

: 35 lb.in (4 Nm)

Courtesy of FORD MOTOR COMPANY
