Rear Bumper Cover - RS: Disassembly
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the rear bumper cover. Refer to: Rear Bumper Cover - RS .
- Remove the screws and the heat shield.
- Disconnect the rear park aid sensor electrical connector, release the tabs and remove the rear park aid sensor from the bracket.

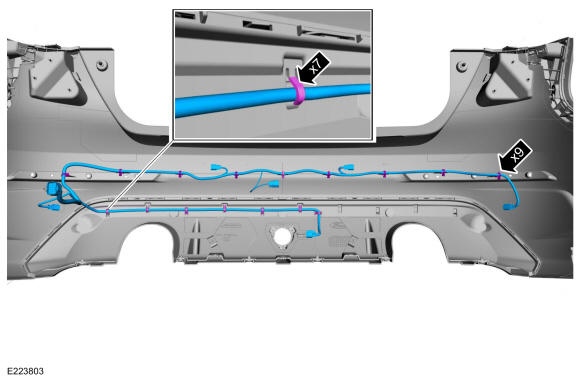

- Release the clips and remove the rear bumper cover wiring harness.

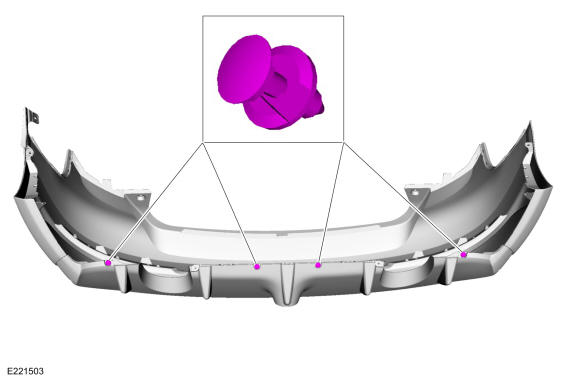

- Remove the push pins.

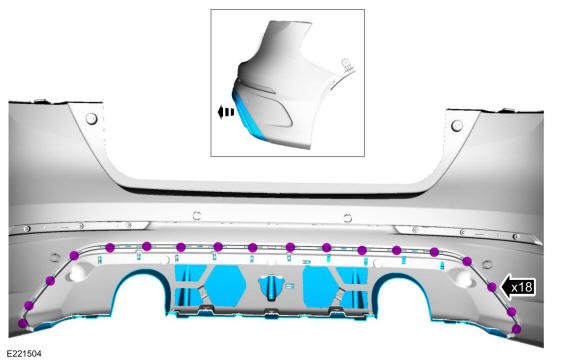

- Release the tabs and remove the lower rear bumper cover.
- On both sides. Release the tabs and remove the outer reflector.
