Rear Bumper Cover - 5-Door: Disassembly

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the rear bumper cover. Refer to: Rear Bumper Cover - 5-Door  .
  2. If equipped, disconnect and remove the rear bumper cover wiring harness.

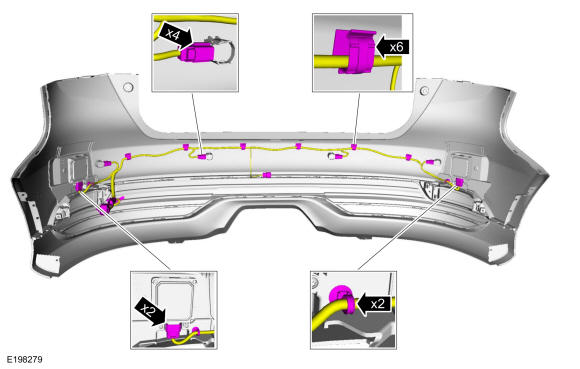

    GFD270505Courtesy of FORD MOTOR COMPANY
  3. NOTE: In four places.

    Remove the rear park aid sensors.

    GFD270500Courtesy of FORD MOTOR COMPANY
  4. Remove the screws and the SODR and SODL.
    GFD270501Courtesy of FORD MOTOR COMPANY
  5. Remove the side obstacle detection module brackets.

    1. Remove the push pins.
    2. Separate the bracket from the rear bumper cover.
    3. Remove and discard the two sided tape.

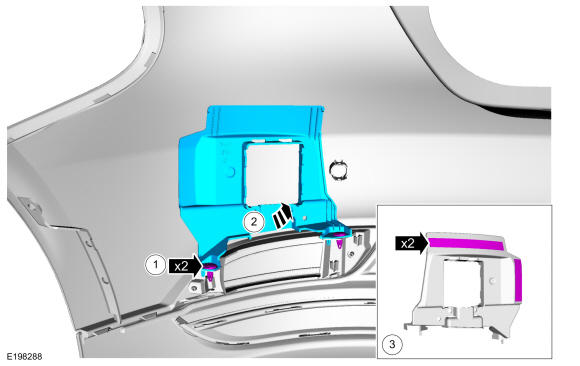

    GFD270506Courtesy of FORD MOTOR COMPANY
  6. NOTE: On both sides.

    Release the tabs and remove the rear reflector.

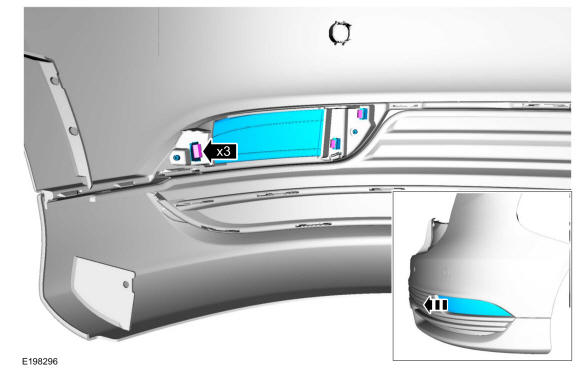

    GFD270507Courtesy of FORD MOTOR COMPANY
  7. Release the tabs and remove the lower rear bumper cover.

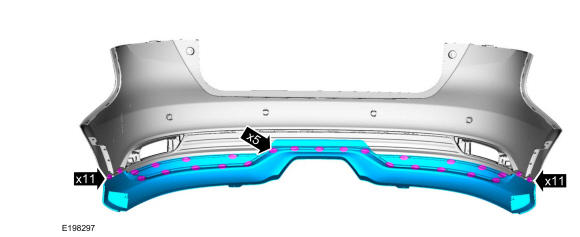

    GFD270508Courtesy of FORD MOTOR COMPANY
  8. Release the tabs and remove the center rear bumper cover.

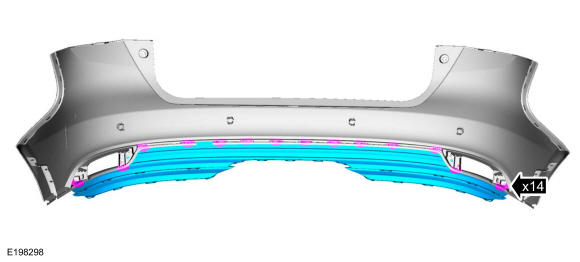

GFD270509Courtesy of FORD MOTOR COMPANY
