Rear Bumper Cover - 4-Door: Disassembly

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the rear bumper cover. Refer to: Rear Bumper Cover - 4-Door  .

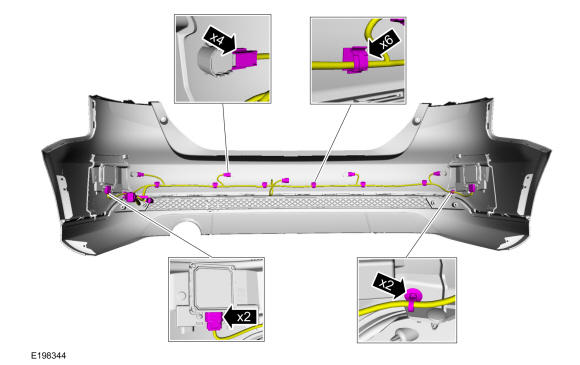

  2. If equipped, disconnect and remove the rear bumper cover wiring harness.
    GFD270499Courtesy of FORD MOTOR COMPANY

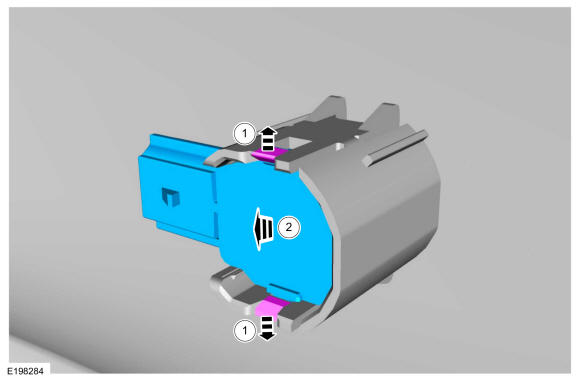

  3. NOTE: In four places.

    Remove the rear park aid sensors.

    GFD270500Courtesy of FORD MOTOR COMPANY

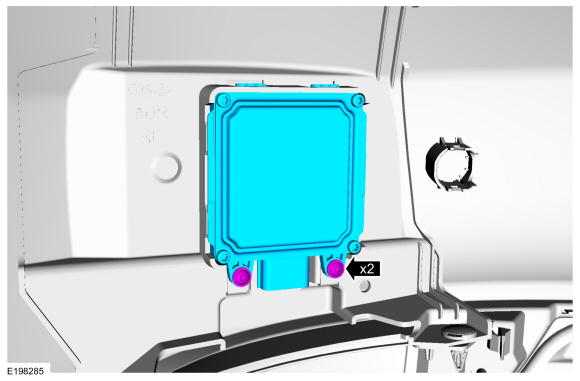

  4. Remove the screws and the SODR and SODL.
    GFD270501Courtesy of FORD MOTOR COMPANY

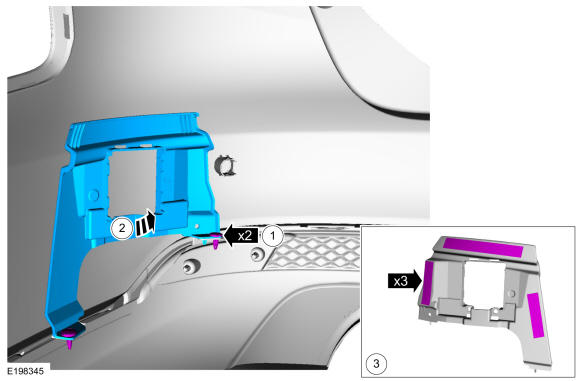

  5. Remove the side obstacle detection module brackets.

    1. Remove the push pins.
    2. Separate the bracket from the rear bumper cover.
    3. Remove and discard the two sided tape.

    GFD270502Courtesy of FORD MOTOR COMPANY

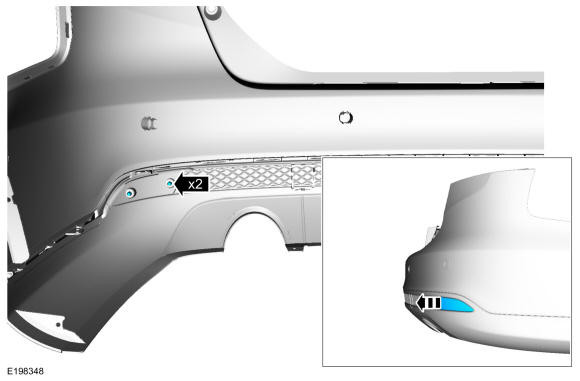

  6. NOTE: On both sides.

    Release the tabs and remove the rear reflector.

    GFD270503Courtesy of FORD MOTOR COMPANY

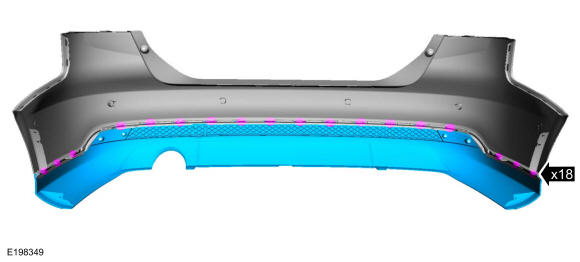

  7. Release the tabs and remove the lower rear bumper cover.
GFD270504Courtesy of FORD MOTOR COMPANY
