Front Bumper Cover: Disassembly

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front bumper cover. Refer to: Front Bumper Cover  .

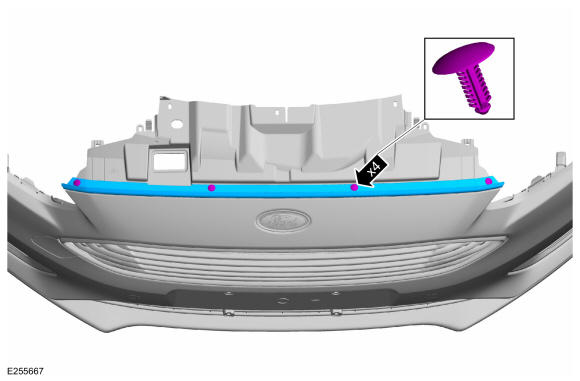

  2. Remove the pin-type retainers and remove the hood seal.
    GFD270479Courtesy of FORD MOTOR COMPANY

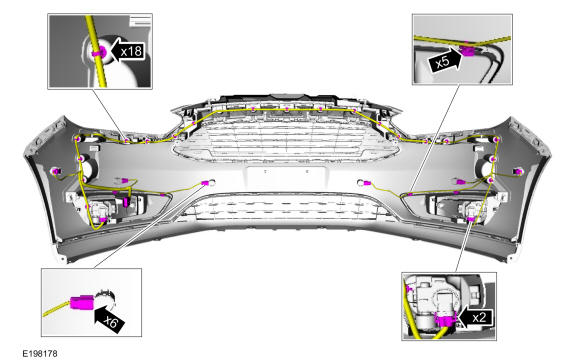

  3. Disconnect and remove the front bumper cover harness.
    GFD270480Courtesy of FORD MOTOR COMPANY

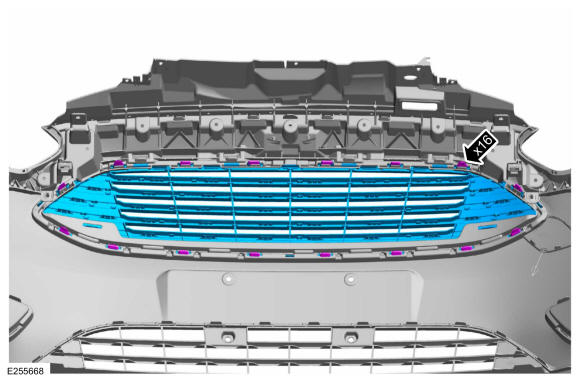

  4. Release the tabs and remove the radiator grille panel.
    GFD270481Courtesy of FORD MOTOR COMPANY

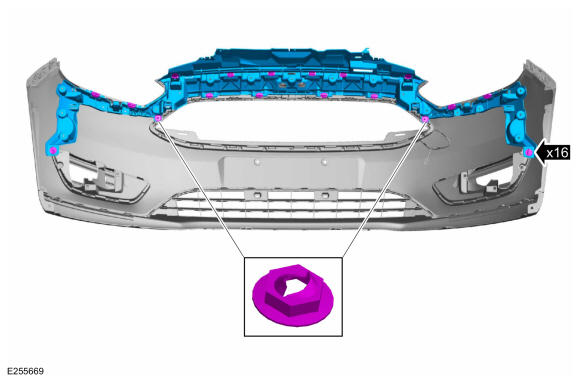

  5. Remove the push nuts, release the tabs and remove the front bumper cover reinforcement.
    GFD270482Courtesy of FORD MOTOR COMPANY

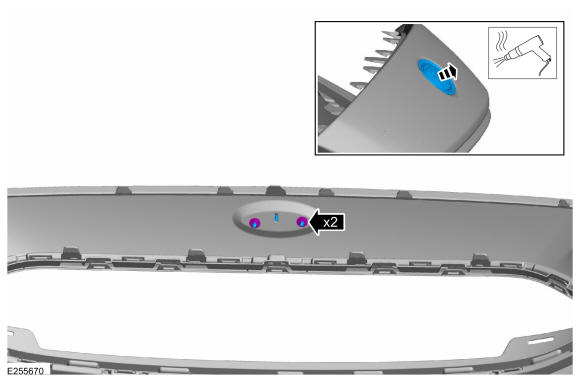

  6. Remove the nuts and the front bumper emblem. Use the General Equipment: Hot Air Gun
    GFD270483Courtesy of FORD MOTOR COMPANY
  7. Remove the front parking aid and active park assist sensors.
    GFD270484Courtesy of FORD MOTOR COMPANY

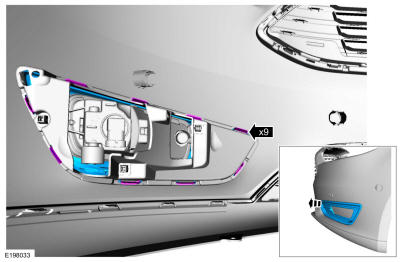

  8. Release the tabs and remove the fog lamp bezel.
    GFD270485Courtesy of FORD MOTOR COMPANY

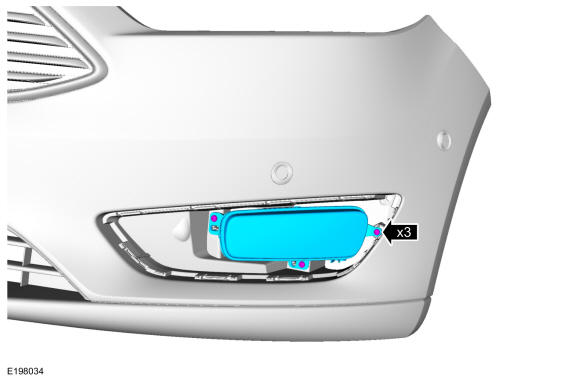

  9. Remove the screws and the fog lamp assembly.
    GFD270486Courtesy of FORD MOTOR COMPANY

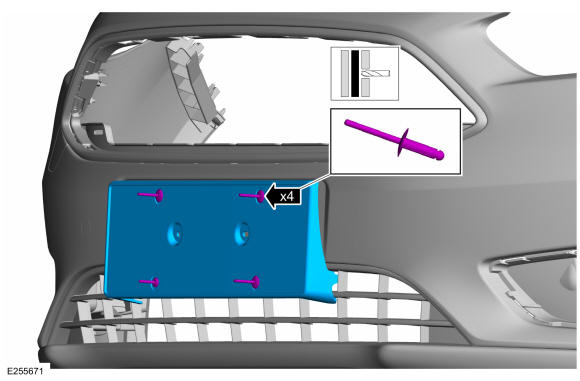

  10. Drill the rivets and remove the license plate bracket.
    GFD270487Courtesy of FORD MOTOR COMPANY

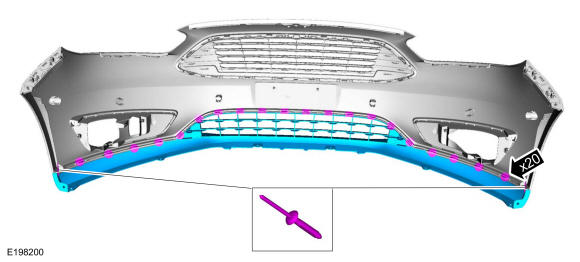

  11. Remove the rivets, release the tabs and remove the lower valence.
GFD270488Courtesy of FORD MOTOR COMPANY
