Front Bumper Cover - RS: Disassembly

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front bumper cover. Refer to: Front Bumper Cover - RS  .
  2. Remove the pin-type retainers and remove the hood seal.
    GFD270489Courtesy of FORD MOTOR COMPANY

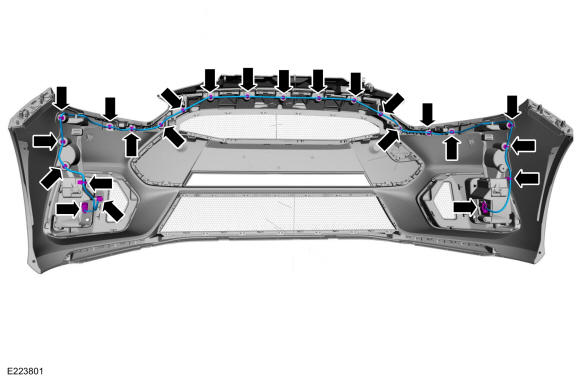

  3. Disconnect the electrical connectors, wiring harness retainers and remove the front bumper cover harness.
    GFD269833Courtesy of FORD MOTOR COMPANY

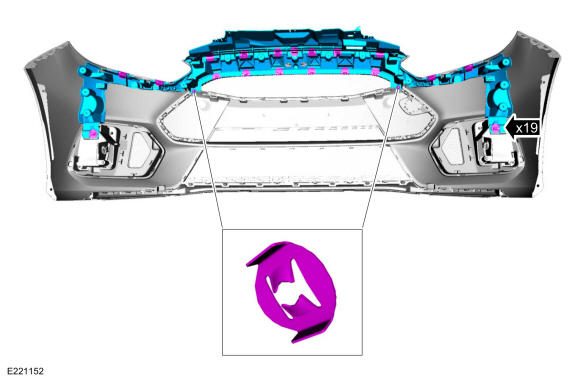

  4. Remove the push nuts, release the clips and the tabs. Remove the front bumper cover reinforcement.
    GFD270490Courtesy of FORD MOTOR COMPANY

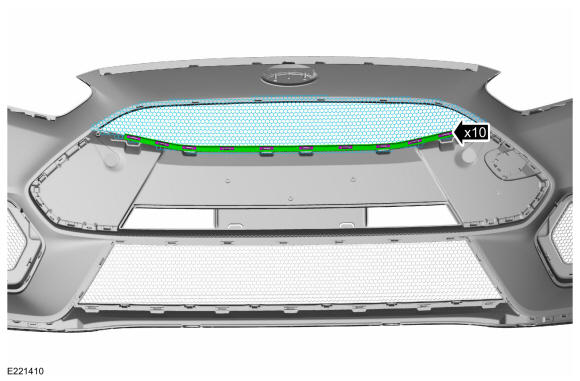

  5. Release the clips, remove the front bumper grill frame and mesh grille.
    GFD270491Courtesy of FORD MOTOR COMPANY
  6. Release the clips, release the tabs and remove the front bumper grill frame and mesh grille.
    GFD270492Courtesy of FORD MOTOR COMPANY
  7. Release the tabs, remove the tow hook cover and the front bumper center grill.
    GFD270493Courtesy of FORD MOTOR COMPANY

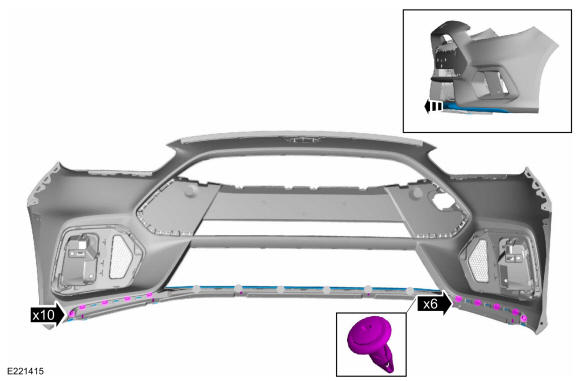

  8. Remove the trim pins, release the tabs and remove the front bumper trim panel.
    GFD270494Courtesy of FORD MOTOR COMPANY

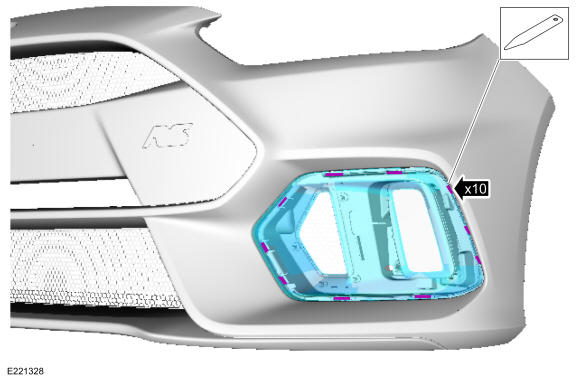

  9. On both sides. Release the tabs and remove the fog lamp bezel. Use the General Equipment: Interior Trim Remover
    GFD270495Courtesy of FORD MOTOR COMPANY

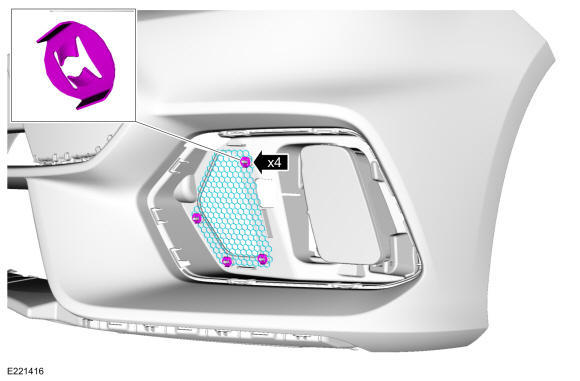

  10. On both sides. Remove the push nuts and the outer mesh grille.
    GFD270496Courtesy of FORD MOTOR COMPANY

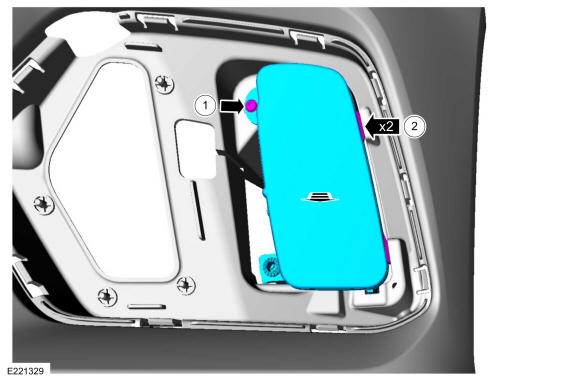

  11. On both sides. Remove the fog lamp assembly.

    1. Remove the screw.
    2. Release the tabs and remove the fog lamp assembly.

    GFD270497Courtesy of FORD MOTOR COMPANY

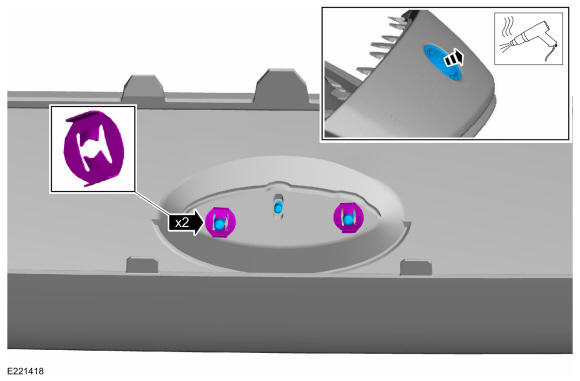

  12. Remove the push nuts and the front bumper emblem. Use the General Equipment: Hot Air Gun
GFD270498Courtesy of FORD MOTOR COMPANY
