Windshield Wiper Pivot Arm: Removal
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
LH side shown, RH side similar.
-
WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT ELECTRIC) . Failure to follow this instruction may result in serious personal injury.
Refer to: Health and Safety Precautions .

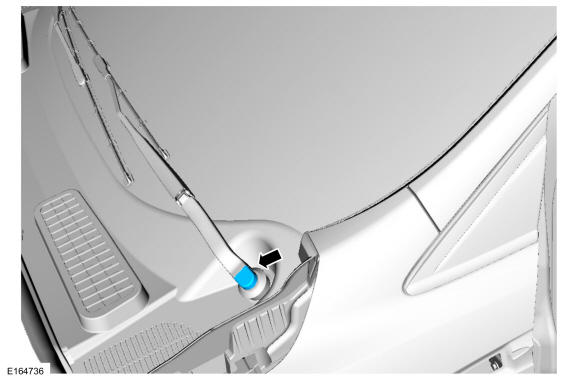

- Open the wiper pivot arm nut cover.

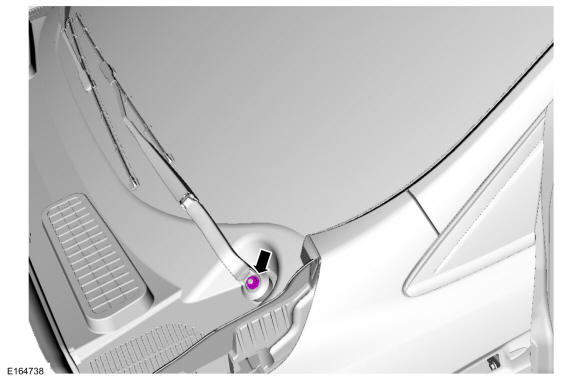

- Remove the wiper pivot arm nut and washer.

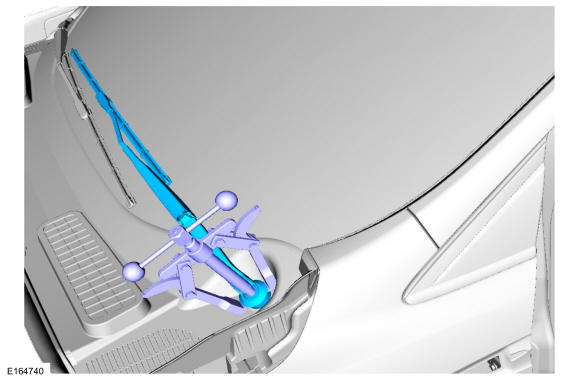

- Remove the wiper pivot arm. Use the General Equipment: Two Leg Puller
