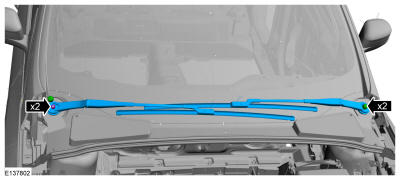

Windshield Wiper Pivot Arm: Installation

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

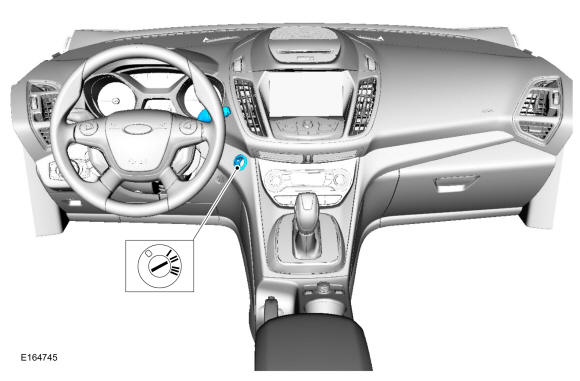

Set ignition switch to the II position (Ignition on).

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure the wiper motors(s) stop in the PARK position.

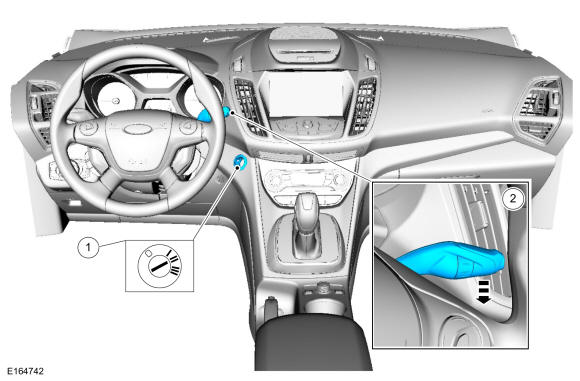

Cycle the wipers "ON" for one complete cycle and then turn the wipers "OFF".

Courtesy of FORD MOTOR COMPANY
NOTE: The ignition must remain "ON" during installation of the wiper pivot arm(s).

Courtesy of FORD MOTOR COMPANY
NOTE: LH side shown, RH side similar.

NOTE: Make sure the wiper motor is in the PARK position.

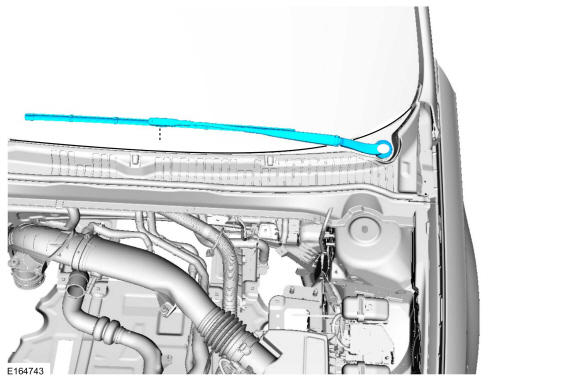

- Position the wiper pivot arm(s) on the wiper motor shaft(s).
- Align the wiper pivot arms per measurements.
- Align the LH windshield wiper pivot arm to 90 mm (3.54).
- Align the RH windshield wiper pivot arm to 75 mm (2.95 in).
Courtesy of FORD MOTOR COMPANY
- Install the wiper pivot arm washer(s) and nut(s)
- Torque to 30 Nm (22 lb-ft).
- Install the wiper pivot arm nut cover(s).
Courtesy of FORD MOTOR COMPANY

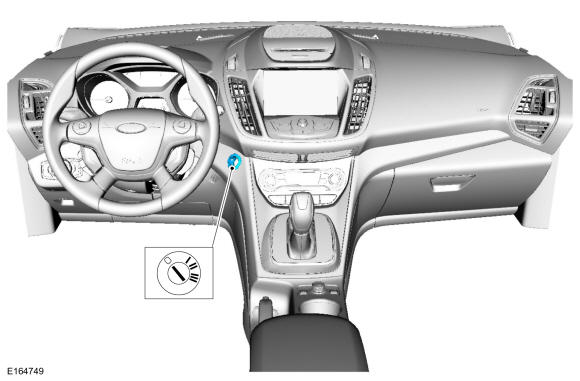

Set ignition to the 0 position (Ignition "OFF").

Courtesy of FORD MOTOR COMPANY
