Windshield Wiper Motor: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the cowl panel. Refer to: COWL PANEL GRILLE .

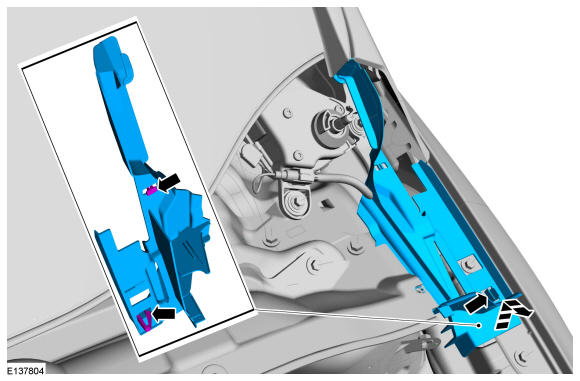

Remove the cowl filler panel.

Courtesy of FORD MOTOR COMPANY

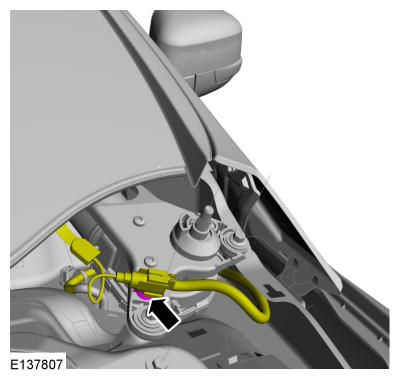

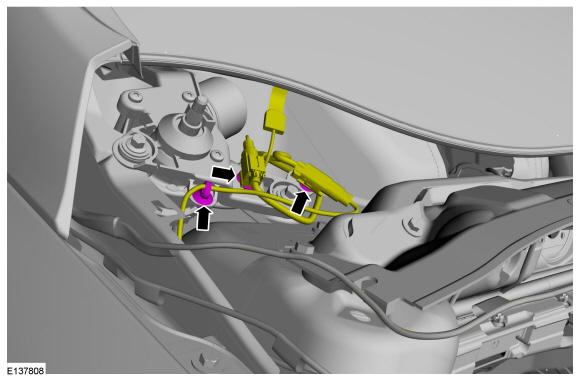

If equipped. Detach the wire harness retainer.

Courtesy of FORD MOTOR COMPANY

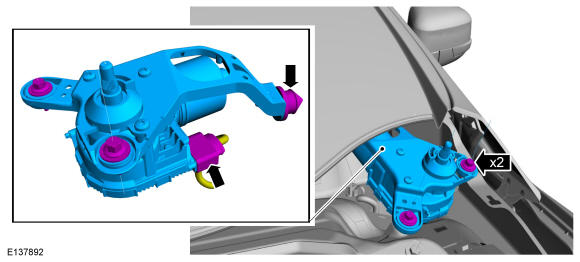

- Remove the bolts and the windshield wiper motor.
  Torque

  : 62 lb.in (7 Nm)
- Disconnect the wiper motor electrical connector.
Courtesy of FORD MOTOR COMPANY

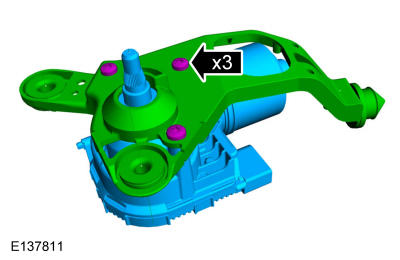

Remove the bolts and separate the windshield wiper motor bracket from the windshield wiper motor.
Torque

: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY

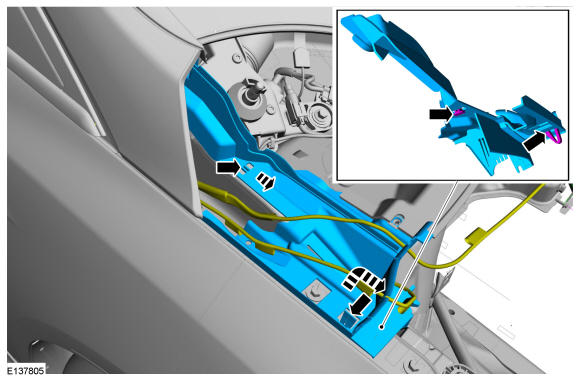

Remove the cowl filler panel.

Courtesy of FORD MOTOR COMPANY
If equipped. Detach the wire harness retainer.

Courtesy of FORD MOTOR COMPANY

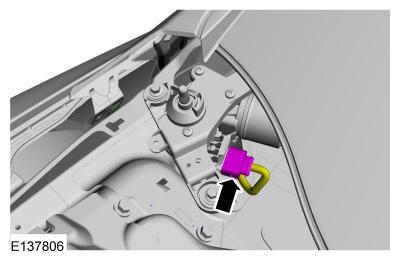

Disconnect the wiper motor electrical connector.

Courtesy of FORD MOTOR COMPANY

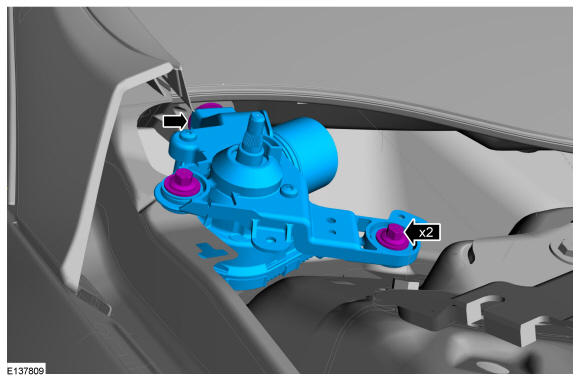

Remove the bolts and the windshield wiper motor.
Torque

: 62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY

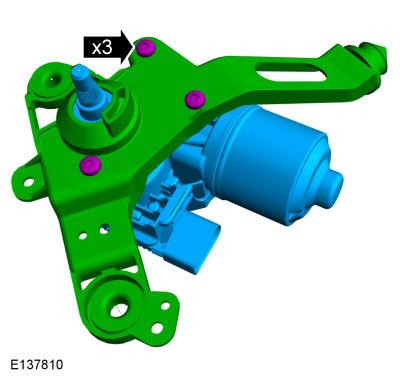

Remove the bolts and separate the windshield wiper motor bracket from the windshield wiper motor.
Torque

: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY
