Windshield Washer Pump: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Refer to: Jacking and Lifting - Overview .
  2. If equipped.
    GFD270404Courtesy of FORD MOTOR COMPANY
    GFD270405Courtesy of FORD MOTOR COMPANY

    Vehicles with headlamp washers

  3. WARNING: Be prepared to collect escaping fluid.

    1. 4-door
    2. 5-door or Kombi

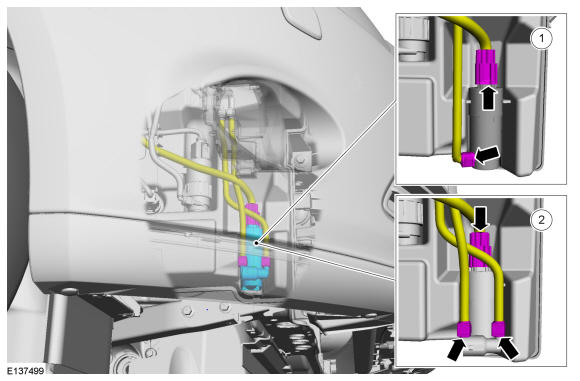

    GFD270406Courtesy of FORD MOTOR COMPANY
  4. WARNING: Be prepared to collect escaping fluid.

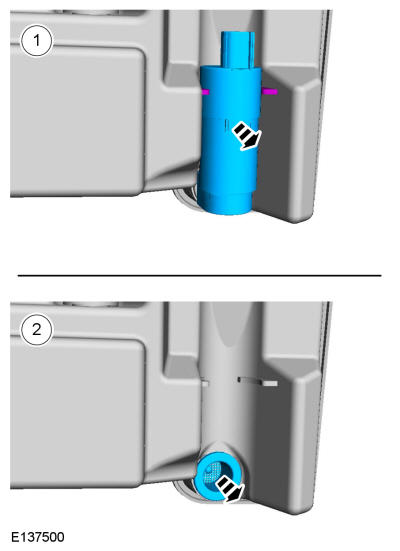

    GFD270407Courtesy of FORD MOTOR COMPANY

    All vehicles

  5. WARNING: Be prepared to collect escaping fluid.

    1. 4-door
    2. 5-door or Kombi

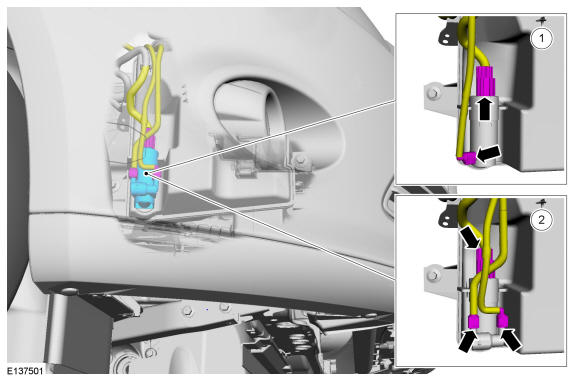

    GFD270408Courtesy of FORD MOTOR COMPANY
  6. WARNING: Be prepared to collect escaping fluid.

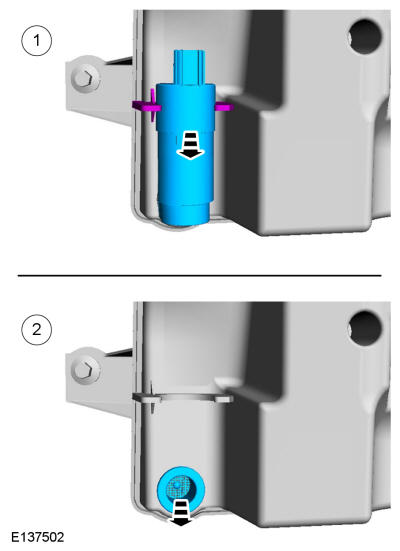

GFD270409Courtesy of FORD MOTOR COMPANY
