Rear Window Wiper Motor: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the rear window wiper pivot arm. Refer to: Rear Window Wiper Pivot Arm .
Remove the liftgate trim panel. Refer to: Liftgate Trim Panel - 5-Door .

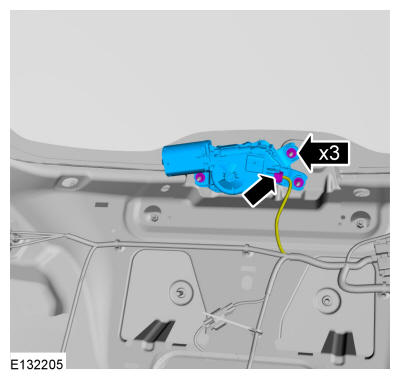

- Disconnect the wiper motor electrical connector.
- Remove the bolts and the rear window wiper motor.
  Torque

  : 62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY
