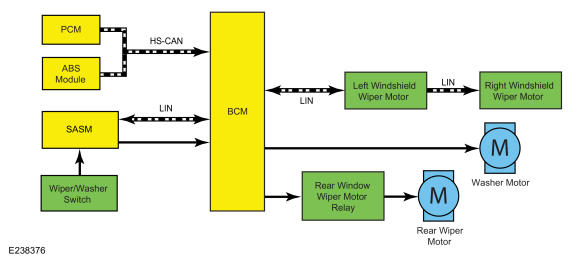

System Diagram
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
BCM |
| 2 |
Wiper/Washer Switch |
| 3 |
Left Windshield Wiper Motor |
| 4 |
Washer Motor |
| 5 |
PCM |
| 6 |
Rear Wiper Motor |
| 7 |
SASM |
| 8 |
Right Windshield Wiper Motor |
| 9 |
ABS Module |
| 10 |
Rear Window Wiper Motor Relay |
