Rear Door Latch: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LH side shown, RH side similar.

NOTE: Removal steps in this procedure may contain installation details.

Remove the rear door trim panel. Refer to: Rear Door Trim Panel .
Remove the exterior rear door handle. Refer to: Exterior Rear Door Handle .
Remove the exterior rear door handle reinforcement screw and gaskets.

Courtesy of FORD MOTOR COMPANY

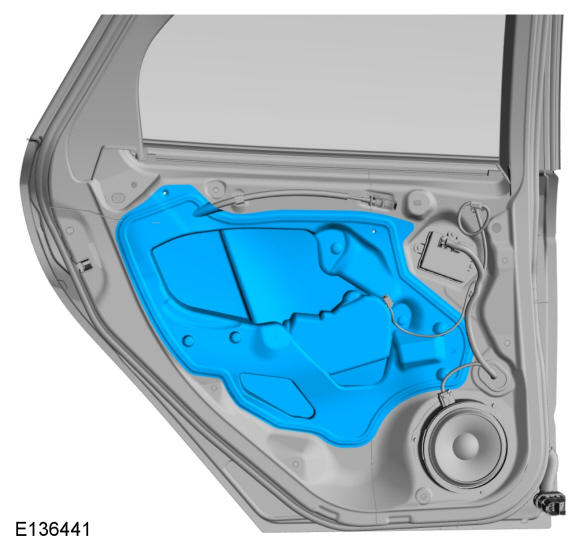

Remove the rear door watershield.

Courtesy of FORD MOTOR COMPANY

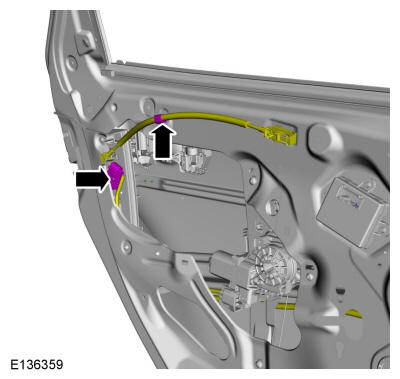

Disconnect the electrical connector and release the interior rear door handle cable routing clip.

Courtesy of FORD MOTOR COMPANY

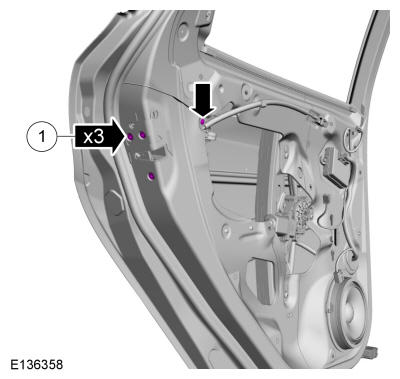

1. Remove the rear door latch bolts and the aft rear door glass run bolt.
  Torque

  : 71 lb.in (8 Nm)
Courtesy of FORD MOTOR COMPANY

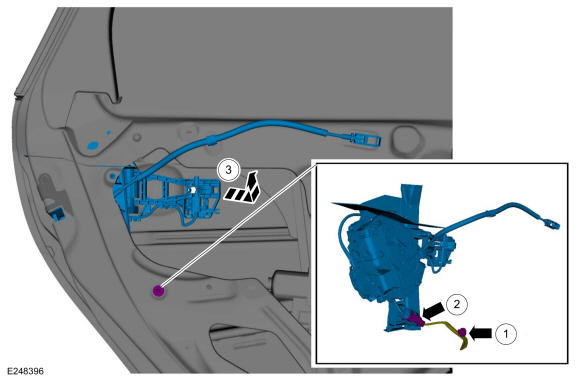

Remove the rear door latch.
1. Release the rear door latch wiring harness routing clip from the rear door.
2. Disconnect the rear door latch wiring harness electrical connector from the rear door latch.
3. Remove the rear door latch.
Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

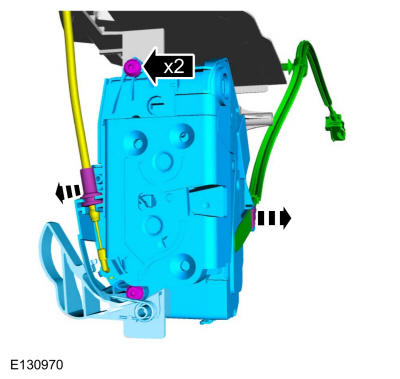

Remove the rear door latch.
- Remove the interior rear door handle cable from the rear door latch.
- Detach and position aside the cable from the rear door latch.
- Remove the screws and the rear door latch.
Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

Remove the exterior rear door handle reinforcement form the carrier.
- Remove the wiring harness retainer and position aside the wiring harness.
- Release the tab and remove the exterior rear door handle reinforcement.

Courtesy of FORD MOTOR COMPANY
