Rear Door Latch: Installation

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

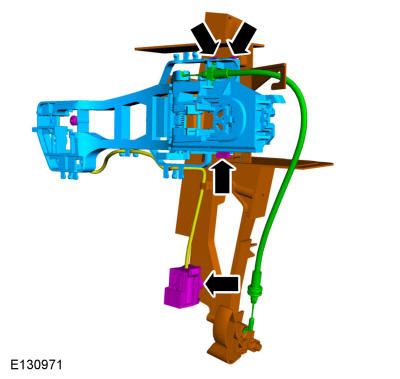

  1. NOTE: This step is only necessary when installing a new component.

    Install the exterior rear door handle reinforcement.

    GFD270379Courtesy of FORD MOTOR COMPANY

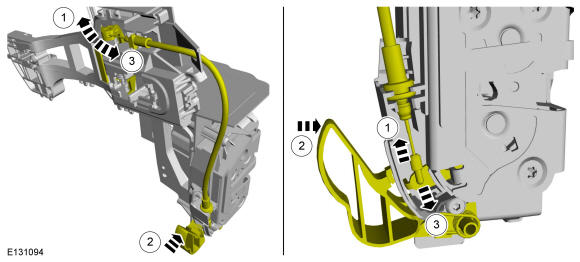

  2. NOTE: This step is only necessary when installing a new component.

    Install the rear door latch.

    • Install the rear door latch and the screws.

    • Install the interior rear door handle cable to the rear door latch.

    • Attach the cable to the rear door latch.

    GFD270380Courtesy of FORD MOTOR COMPANY

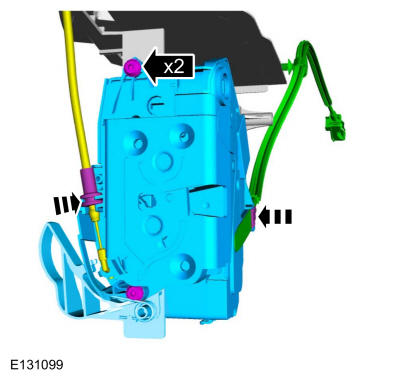

  3. Position the rear door interior door handle cable and electrical harness.

    1. Position the rear door interior door handle cable through the door.
    2. Connect the rear door latch electrical connector.
    3. Connect the rear door exterior handle harness routing clip.

    GFD270381Courtesy of FORD MOTOR COMPANY
  4. To install, reverse the removal procedure.
