Radio Frequency (RF) Receiver: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Do not bend or crease the headliner during removal or installation. Failure to follow instruction results in damage to the headliner.

NOTE: Removal steps in this procedure may contain installation details.

Remove both A-pillar trim panels. Refer to: A-Pillar Trim Panel .

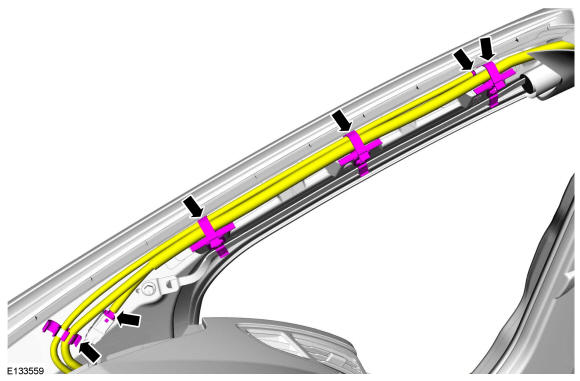

Release the headliner wiring harness retainers from the RH A-pillar and disconnect and plug the rear window washer hose.

Courtesy of FORD MOTOR COMPANY
Remove the overhead console. Refer to: Overhead Console .
For vehicles equipped with auto dimming rear view mirror, remove the rain sensor upper and lower covers.

Courtesy of FORD MOTOR COMPANY

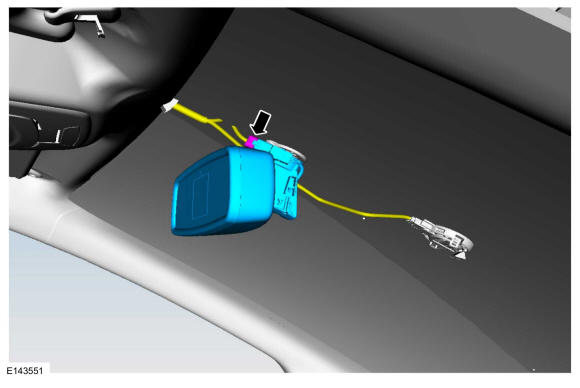

For vehicles equipped with auto dimming rear view mirror, disconnect the rear view mirror and rain sensor electrical connectors.

Courtesy of FORD MOTOR COMPANY
Position both upper B-pillar trim panels aside.
1. Position the front and rear door weatherstrip from around the upper B-pillar trim panel aside
2. Remove the upper B-pillar trim panel screw cover.
3. Remove the upper B-pillar trim panel screw.
4. Disconnect the upper clips of the lower B-pillar trim panel from the upper B-pillar trim panel.
5. Release the 2 upper B-pillar trim panel clips and position the upper B-pillar aside.
Courtesy of FORD MOTOR COMPANY
Remove both D-pillar trim panels. Refer to: D-Pillar Trim Panel - 5-Door .

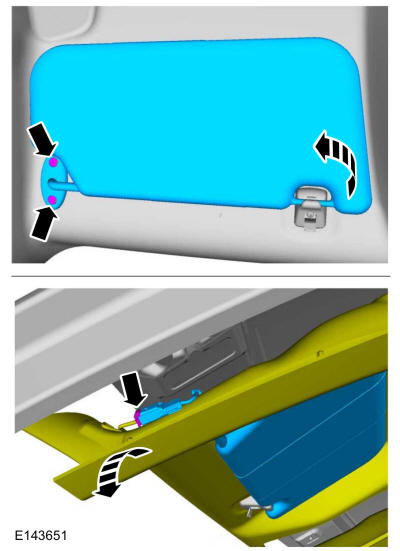

Remove both sunvisors.
1. Remove both sunvisor screws.
2. Position the upper corner of the headliner down to access the sunvisor electrical connector and disconnect the electrical connector.
Courtesy of FORD MOTOR COMPANY
NOTE: Assist handle shown, garment hooks similar.

Remove the passenger front assist handle and both rear garment hooks.

Courtesy of FORD MOTOR COMPANY
Disconnect and plug the rear window washer hose from the RH D-pillar.

Courtesy of FORD MOTOR COMPANY
Position aside all weatherstrip from around the headliner.

Courtesy of FORD MOTOR COMPANY

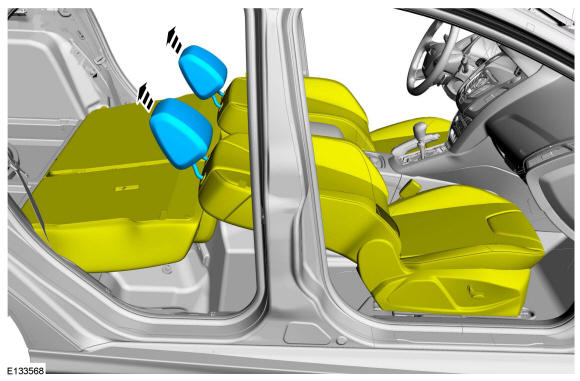

Position front and rear seats.
1. Position the rear seat backrest in the full flat position.
2. Position the front seats in the full forward and full reclined position.
3. Remove both front seat headrests.
Courtesy of FORD MOTOR COMPANY

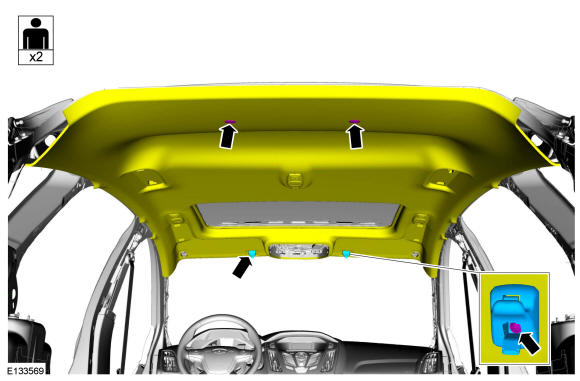

Using an assistant, remove both sunvisor clips and both headliner rear pin-type retainers and position the headliner down.

Courtesy of FORD MOTOR COMPANY

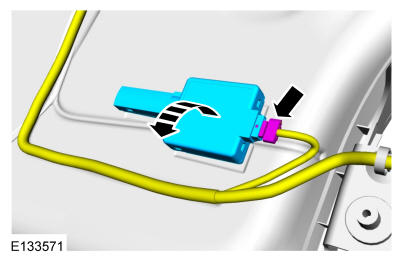

NOTE: Gently pry the Remote Functions Receiver (RFR) away from the headliner or damage to the headliner may occur.

Remove the Remote Functions Receiver (RFR).

Courtesy of FORD MOTOR COMPANY
