Luggage Compartment Lid Latch: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.

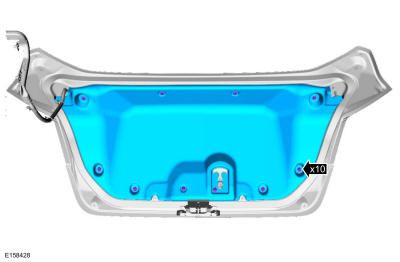

  1. Remove the luggage compartment lid trim panel.

    • Remove the retainers from luggage compartment lid trim panel.

    • Remove the luggage compartment lid trim panel.

    GFD270353Courtesy of FORD MOTOR COMPANY

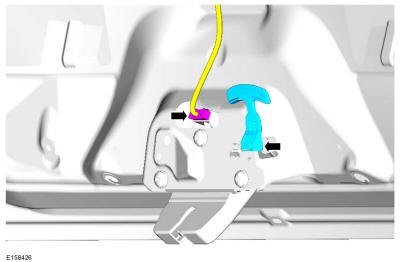

  2. Remove the luggage compartment lid latch emergency release handle.

    • Disconnect the luggage compartment lid latch electrical connector.

    • Remove the luggage compartment lid latch emergency release handle.

    GFD270354Courtesy of FORD MOTOR COMPANY

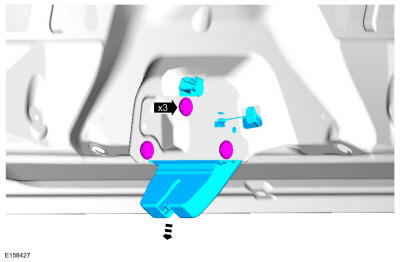

  3. Remove the bolts and the luggage compartment lid latch.

    Torque

    : 177 lb.in (20 Nm)

GFD270355Courtesy of FORD MOTOR COMPANY
