Liftgate Latch: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the liftgate trim panel. Refer to: Liftgate Trim Panel - 5-Door .

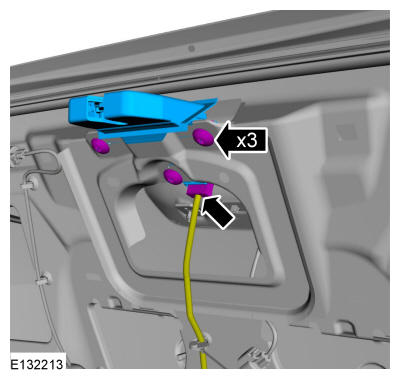

  2. Remove the liftgate latch.

    • Disconnect the liftgate latch electrical connector.

    • Remove the bolts and the liftgate latch.

GFD270372Courtesy of FORD MOTOR COMPANY
