Interior Door Handle: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: LHF shown, all others similar.
  1. Release the clips and remove the interior door handle screw cover.
    GFD269986Courtesy of FORD MOTOR COMPANY

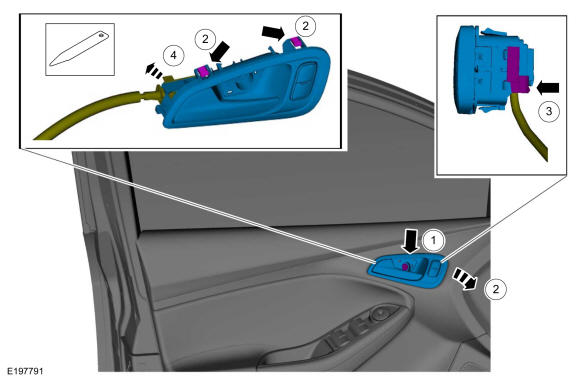

  2. Remove the interior door handle.

    1. Remove the interior door handle retainer.
    2. Release the interior door handle retaining tabs and remove the interior door handle.
    3. If equipped, disconnect the door lock control switch electrical connector.
    4. Disconnect the latch control cable and remove the interior door handle.

    GFD270350Courtesy of FORD MOTOR COMPANY
  3. NOTE: This step is only necessary when installing a new component.

    If equipped, remove the door lock control switch.

    1. Release the tabs on the door lock control switch.
    2. Remove the door lock control switch.

GFD270345Courtesy of FORD MOTOR COMPANY
