Hood Latch Release Cable: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

Remove the battery tray. Refer to: Battery Tray .

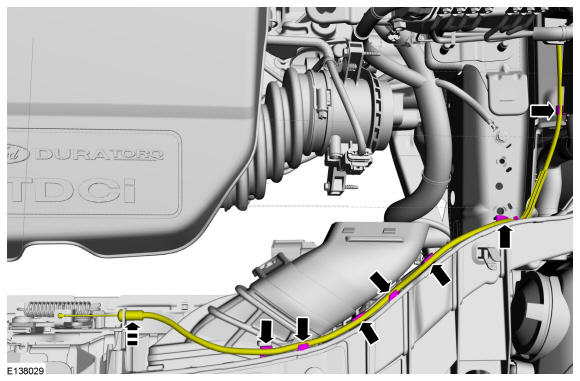

Release the hood latch release cable.
- Remove the hood latch release cable routing clips and position aside the hood latch release cable.
- Release the hood latch release cable.
Courtesy of FORD MOTOR COMPANY

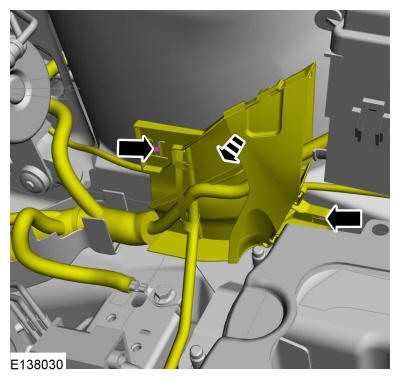

Release the hood latch release cable from the routing bracket.

Courtesy of FORD MOTOR COMPANY

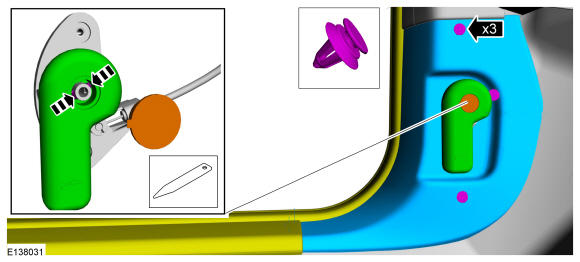

Remove the hood latch release handle and the LH cowl trim panel.
- Position aside the front door weatherstrip and the driver door scuff plate
- Remove the hood latch release handle access cover.
- Release the clips releasing the hood latch release handle and remove the hood latch release handle.
- NOTE: Insert a 10mm 1/4 inch drive socket to release the clips.

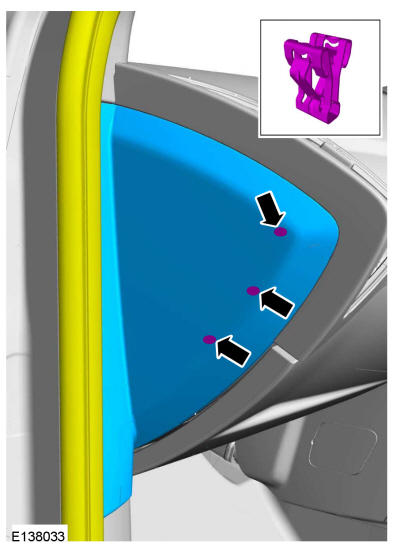

  Release the clips and remove the LH cowl trim panel.
Courtesy of FORD MOTOR COMPANY

RHD
Remove the LH instrument panel finish panel.
- Position aside the front door weatherstrip.
- Remove the LH instrument panel finish panel.
Courtesy of FORD MOTOR COMPANY

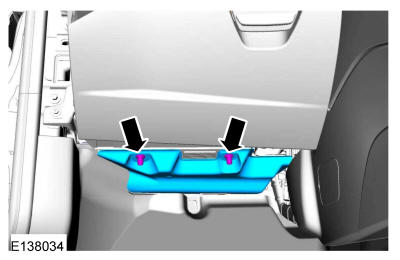

Remove the retainers and the RH insulation panel.

Courtesy of FORD MOTOR COMPANY

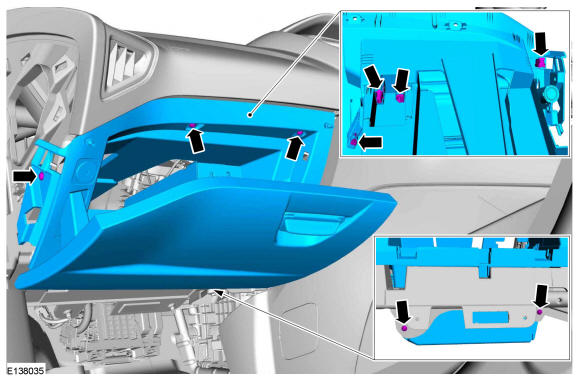

Open the glove compartment, remove the retainers and the glove compartment upper stowage bin.

Courtesy of FORD MOTOR COMPANY

All vehicles

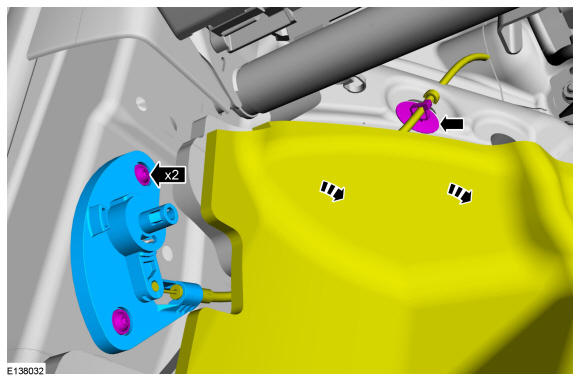

Remove the hood latch release.
- Position aside the carpet.
- Release the routing cable clips, remove the retainers and the hood latch release.
Courtesy of FORD MOTOR COMPANY

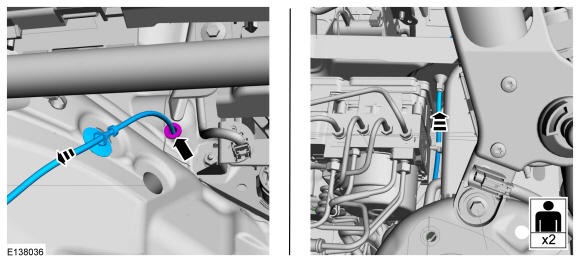

Route the hood latch release cable through the to the engine compartment and remove the rear hood latch release cable.

Courtesy of FORD MOTOR COMPANY
