Front Door Lock Control Switch: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: LH shown, RH similar.
  1. Remove the interior front door handle. Refer to: Interior Door Handle  .
  2. NOTE: This step is only necessary when installing a new component.

    Remove the door lock control switch.

    1. Release the tabs on the door lock control switch.
    2. Remove the door lock control switch.

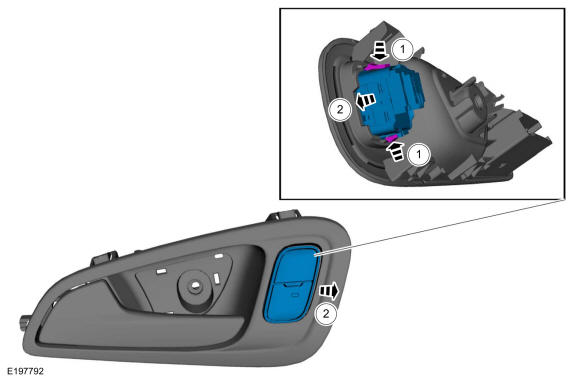

GFD270345Courtesy of FORD MOTOR COMPANY
