Front Door Latch: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the front door trim panel. Refer to: Front Door Trim Panel .

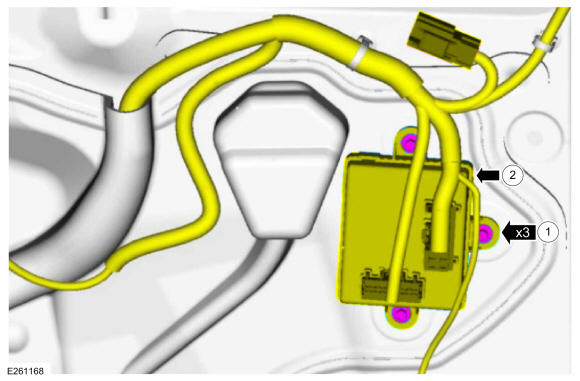

  2. Position the DDM and wiring harness aside.

    1. Remove the retainers from the DDM.
    2. Position the DDM and wiring harness aside.

    GFD270334Courtesy of FORD MOTOR COMPANY

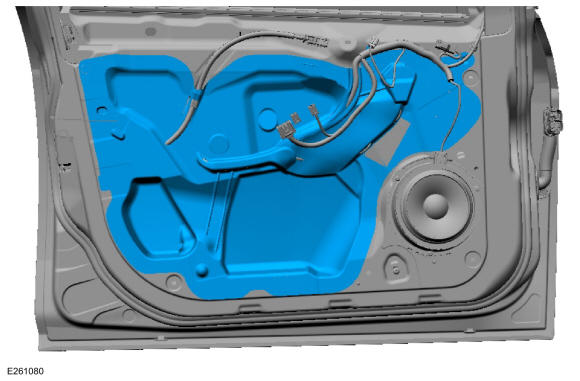

  3. Remove the front door watershield.
    GFD270335Courtesy of FORD MOTOR COMPANY

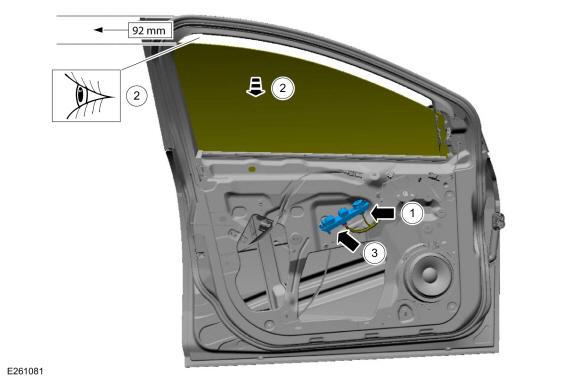

  4. Install the front door window control switch and lower the front door window glass 92 mm.

    1. Install the front door window control switch.
    2. Lower the front door window glass 92 mm.
    3. Remove the front door window control switch.

    GFD270336Courtesy of FORD MOTOR COMPANY

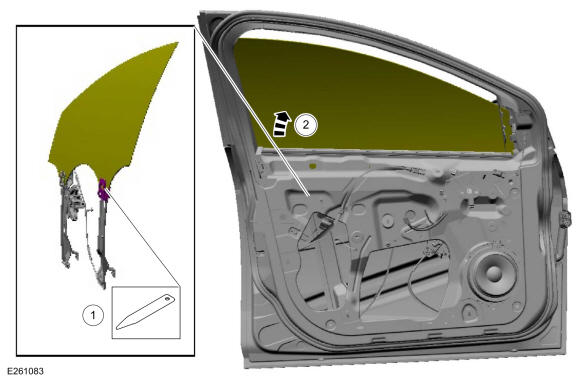

  5. Release the retaining clip from front door window glass.

    1. Release the retaining clip from front door window glass. Use the General Equipment: Interior Trim Remover
    2. Raise front door window glass enough to release the front door window glass from the retaining clip.

    GFD270337Courtesy of FORD MOTOR COMPANY

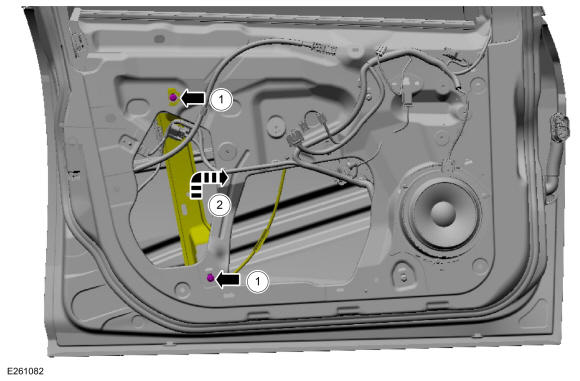

  6. Position the front door window regulator aside

    1. Remove the nuts.
    2. Position the front door window regulator aside.

    GFD270338Courtesy of FORD MOTOR COMPANY
  7. Remove the Exterior front door handle. Refer to: Exterior Front Door Handle  .
  8. Remove the exterior door handle reinforcement screw and gaskets.
    GFD270339Courtesy of FORD MOTOR COMPANY

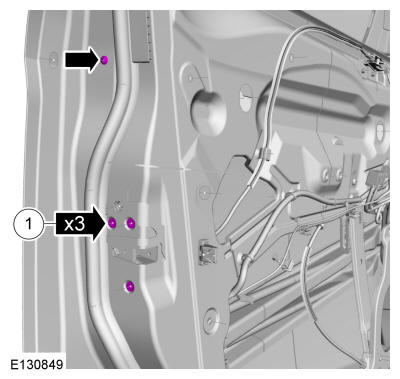

    1. Remove the front door latch bolts.

      Torque

      : 71 lb.in (8 Nm)

    GFD270340Courtesy of FORD MOTOR COMPANY

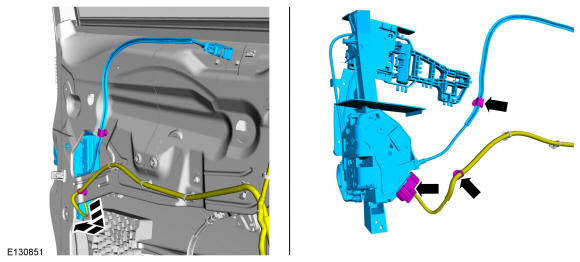

  10. Disconnect the routing clips, the electrical connector and remove the front door latch.
    GFD270341Courtesy of FORD MOTOR COMPANY

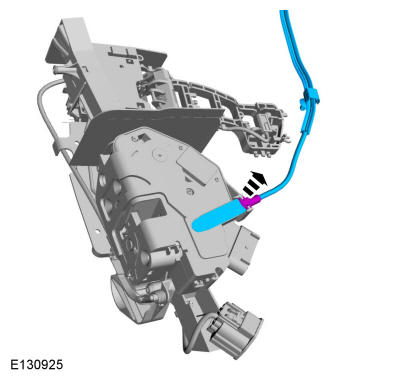

  11. NOTE: This step is only necessary when installing a new component.

    Remove the interior front door handle cable from the front door latch.

    GFD270342Courtesy of FORD MOTOR COMPANY

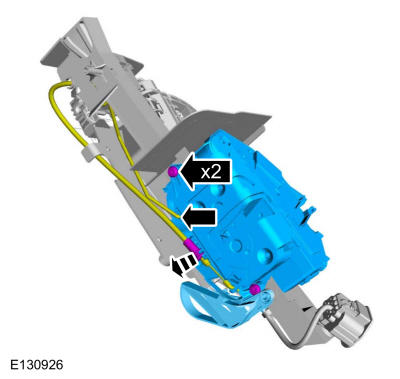

  12. NOTE: This step is only necessary when installing a new component.

    • Remove the screws.

    • Detach and position the cable from the front door latch aside

    • Detach the rod and remove the front door latch.

    GFD270343Courtesy of FORD MOTOR COMPANY

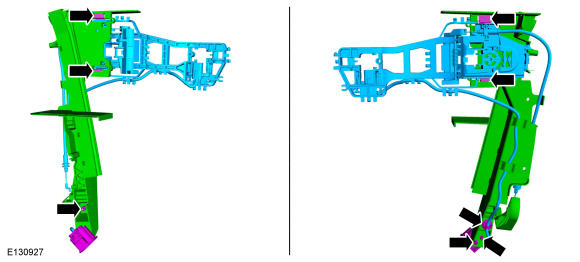

  13. NOTE: This step is only necessary when installing a new component.

    Remove the exterior front door handle reinforcement from the carrier.

    • Remove the wiring harness retainer and position the wiring harness aside.

    • Release the tab and remove the exterior front door handle reinforcement.

GFD270344Courtesy of FORD MOTOR COMPANY
