Exterior Rear Door Handle: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: LH shown, RH similar.

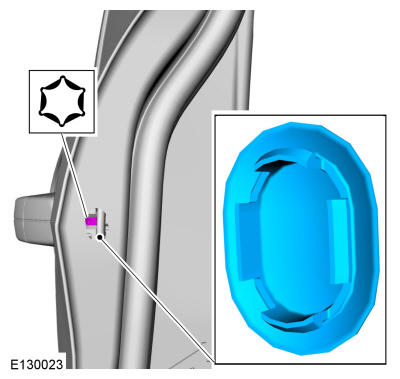

  1. Remove the access plug and loosen the screw.
    GFD270326Courtesy of FORD MOTOR COMPANY
  2. Remove the exterior rear door handle cover.
    GFD270333Courtesy of FORD MOTOR COMPANY

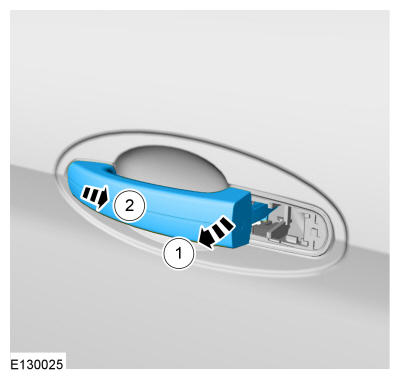

  3. Remove the exterior rear door handle.

    1. Pull outward on the exterior rear door handle.
    2. Slide the exterior rear door handle out of the rear door.

GFD270328Courtesy of FORD MOTOR COMPANY
