Exterior Front Door Handle: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the exterior door handle bezel bolt cover and loosen, but do not remove the exterior door handle bezel bolt.
    GFD270326Courtesy of FORD MOTOR COMPANY

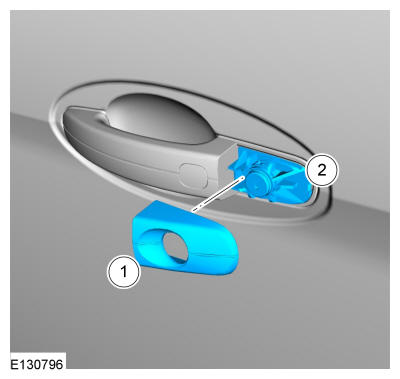

    1. Pull outward and remove the exterior door handle bezel.
    2. If equipped, remove the door lock cylinder.
    GFD270327Courtesy of FORD MOTOR COMPANY

    Vehicles without keyless entry

    1. Pull the exterior door handle outward.
    2. Remove the exterior door handle.
    GFD270328Courtesy of FORD MOTOR COMPANY

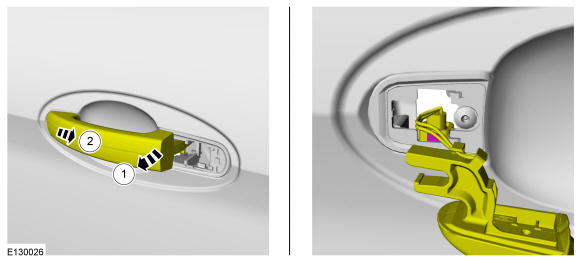

    Vehicles with keyless entry

    1. Pull the exterior door handle outward.
    2. Position aside the exterior door handle.
    GFD270329Courtesy of FORD MOTOR COMPANY

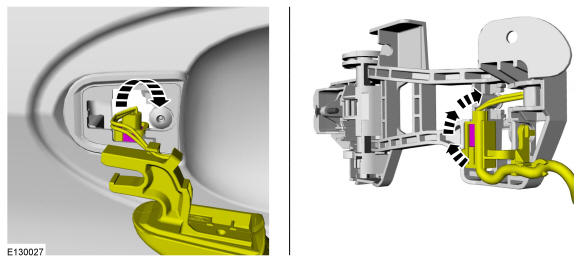

  5. Route the harness through the door.
    GFD270330Courtesy of FORD MOTOR COMPANY

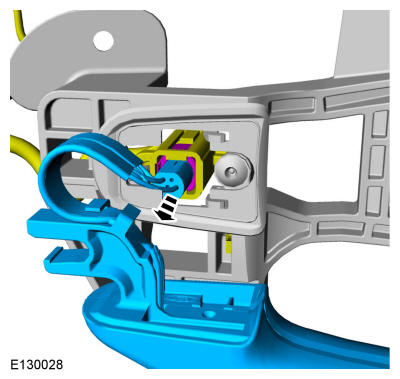

  6. Disconnect the electrical connector and remove the exterior door handle.
GFD270331Courtesy of FORD MOTOR COMPANY
