Door Lock Cylinder: Installation
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
- Install the door lock cylinder into the exterior door handle in the following sequence:

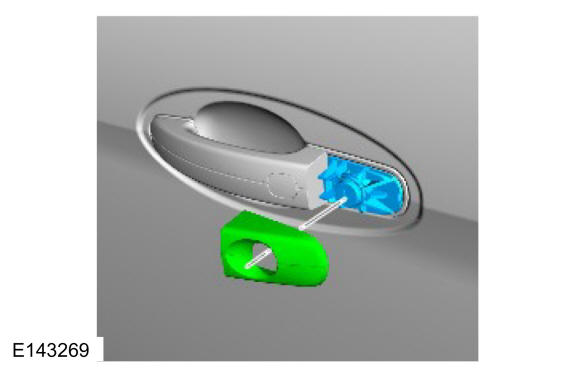

- Install the door lock cylinder.
- Install the exterior door handle bezel.
-
NOTE: Overtightening the exterior front door handle bezel bolt results in the increased opening effort of the door handle and possible damage to the exterior front door handle bezel.

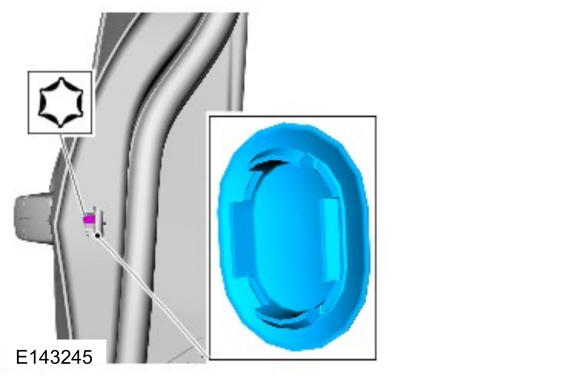

Tighten the exterior door handle bezel bolt and install the exterior door handle bezel bolt cover.
Torque
: 18 lb.in (2 Nm)
