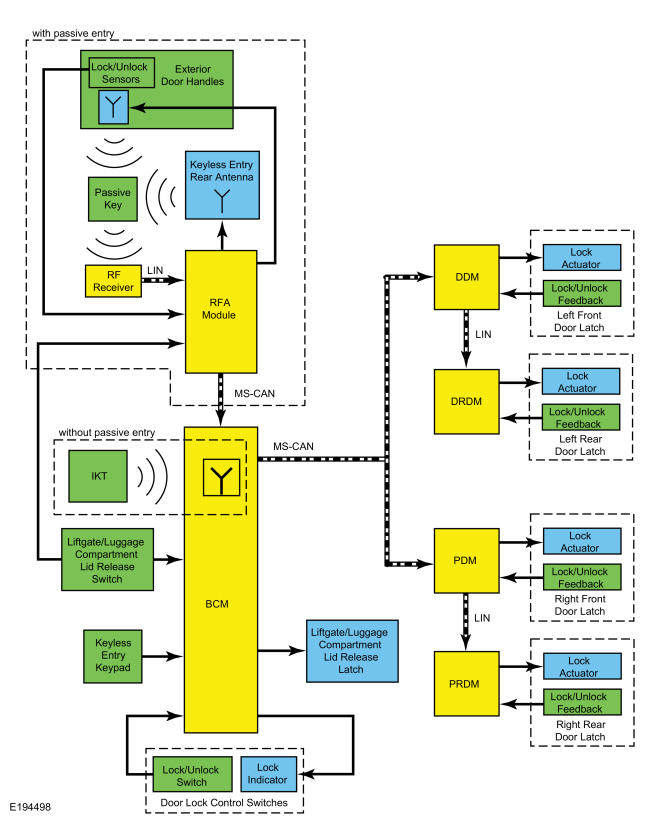

System Diagram
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Description |
|---|---|
| 1 | BCM |
| 2 | Liftgate/Luggage Compartment Lid Release Switch |
| 3 | Liftgate/Luggage Compartment Lid Release Latch |
| 4 | DDM |
| 5 | DRDM |
| 6 | PDM |
| 7 | PRDM |
| 8 | Lock Actuator |
| 9 | Lock/Unlock Feedback |
| 10 | Left Rear Door Latch |
| 11 | Lock Actuator |
| 12 | Lock/Unlock Feedback |
| 13 | Left Front Door Latch |
| 14 | Lock Actuator |
| 15 | Lock/Unlock Feedback |
| 16 | Right Front Door Latch |
| 17 | Lock Actuator |
| 18 | Lock/Unlock Feedback |
| 19 | Right Rear Door Latch |
| 20 | Passive Key |
| 21 | Keyless Entry Rear Antenna |
| 22 | RFA Module |
| 23 | RF Receiver |
| 24 | Exterior Door Handles |
| 25 | Lock/Unlock Sensors |
| 26 | Keyless Entry Keypad |
| 27 | IKT |
| 28 | without passive entry |
| 29 | with passive entry |
| 30 | Lock/Unlock Switches |
| 31 | Lock Indicator |
| 32 | Door Lock Control Switches |
