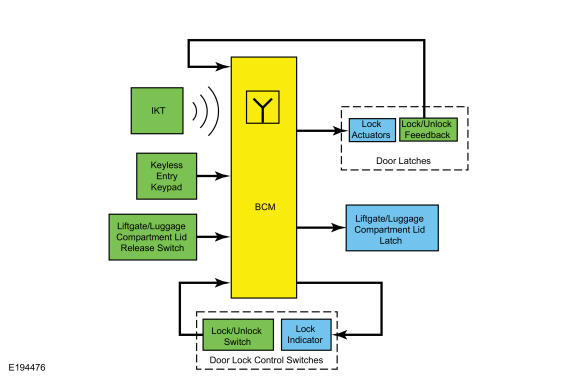

System Diagram
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
BCM |
| 2 |
Lock Actuators |
| 3 |
Lock/Unlock Feeedback |
| 4 |
Liftgate/Luggage Compartment Lid Release Switch |
| 5 |
Liftgate/Luggage Compartment Lid Latch |
| 6 |
Door Latches |
| 7 |
IKT |
| 8 |
Lock/Unlock Switches |
| 9 |
Lock Indicator |
| 10 |
Door Lock Control Switches |
| 11 |
Keyless Entry Keypad |
