Floor Console - Vehicles Without: Center Armrest: Removal
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the RH cover. Use the General Equipment: Interior Trim Remover

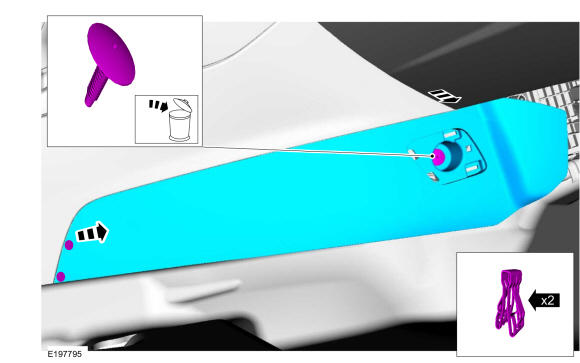

- Remove and discard the push pin, release the clips and remove the RH floor console lower trim panel.

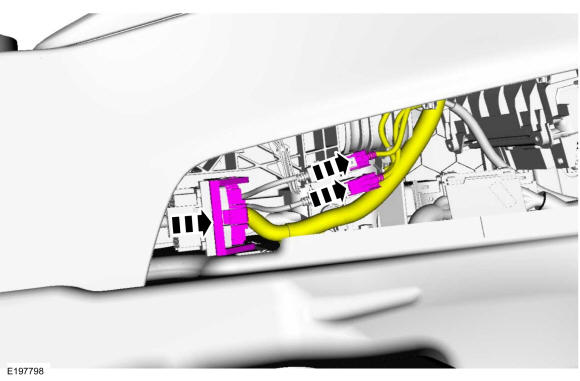

- Disconnect the electrical connectors.
- Remove the LH cover. Use the General Equipment: Interior Trim Remover
- Remove and discard the push pin, release the clips and remove the LH floor console lower trim panel.

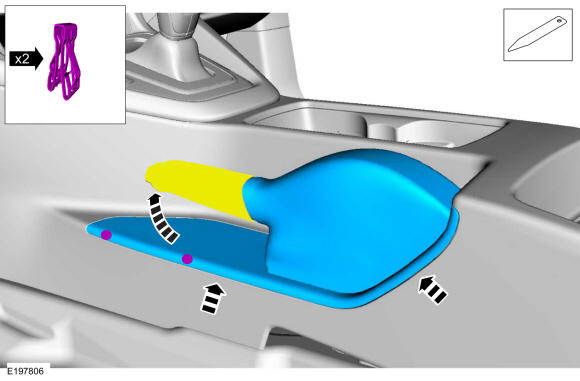

- Raise the parking brake handle release the clips and remove the parking brake trim panel and boot over the parking brake handle. Use the General Equipment: Interior Trim Remover
-
NOTE: Automatic transmission shown, manual transmission similar.
Remove the selector lever trim ring. Use the General Equipment: Interior Trim Remover
- Remove the RH finish panel. Use the General Equipment: Interior Trim Remover
- Remove the instrument panel center finish panel.
- Disconnect the electrical connector. Use the General Equipment: Interior Trim Remover
- Release the clips and remove the floor console upper finish panel. Use the General Equipment: Interior Trim Remover
- Remove the screws, release the clips and remove the floor console upper trim panel.
- Disconnect the electrical connectors.
Torque
: 18 lb.in (2 Nm)
- Disconnect the electrical connectors.
- Remove the floor console.
- Remove the screw
Torque
: 18 lb.in (2 Nm)

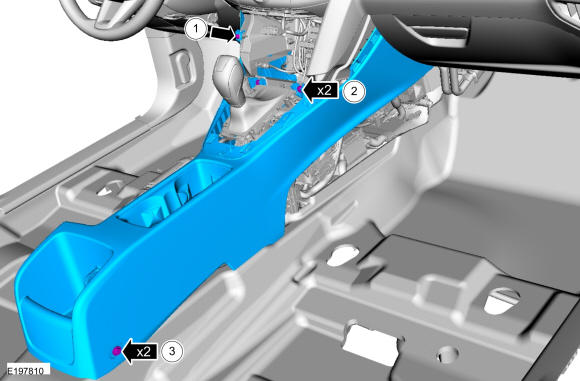

- Remove the front console bolts.
Torque
: 28 lb.in (3.2 Nm)
- Remove the rear console bolts.
Torque
: 28 lb.in (3.2 Nm)
- Remove the screw
