Rear Seat Backrest: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: RH backrest must be removed before the LH backrest can be removed.
NOTE: Removal steps in this procedure may contain installation details.

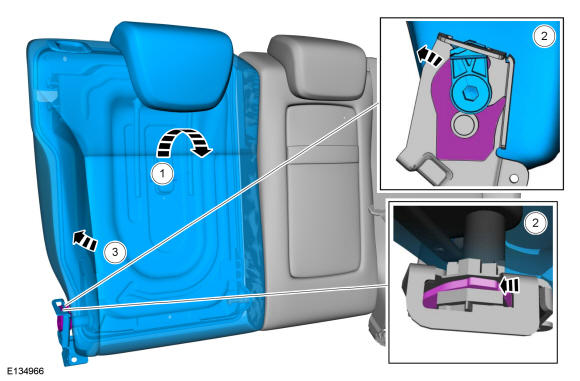

  1. Remove the RH seat backrest.

    1. Lower the backrest.
    2. Rotate the backrest hinge locking clip rearward and release the backrest.
    3. Remove the backrest.

    GFD270162Courtesy of FORD MOTOR COMPANY

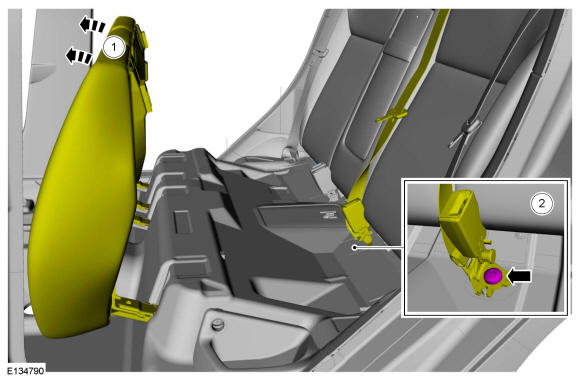

  2. Position the rear center safety belt aside.

    1. Raise the LH rear seat cushion forward.
    2. Remove the rear center safety belt fastener and position the safety belt aside.

      Torque

      : 41 lb.ft (55 Nm)

    GFD270163Courtesy of FORD MOTOR COMPANY

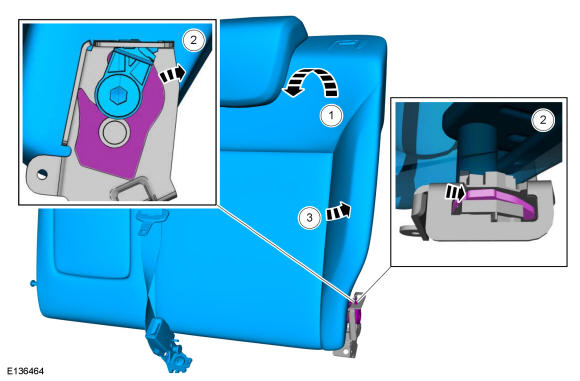

  3. Remove the LH seat backrest.

    1. Lower the backrest.
    2. Rotate the backrest hinge locking clip rearward and release the backrest.
    3. Remove the backrest.

GFD270164Courtesy of FORD MOTOR COMPANY
