Rear Seat Backrest Latch: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

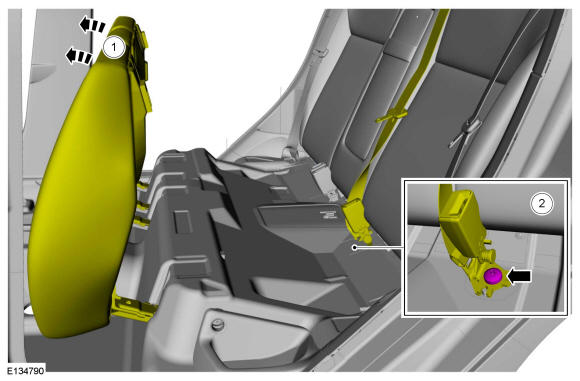

1. Fold the rear seat cushion forward.
2. Remove the center safety restraint fastener.
  Torque

  : 41 lb.ft (55 Nm)
Courtesy of FORD MOTOR COMPANY

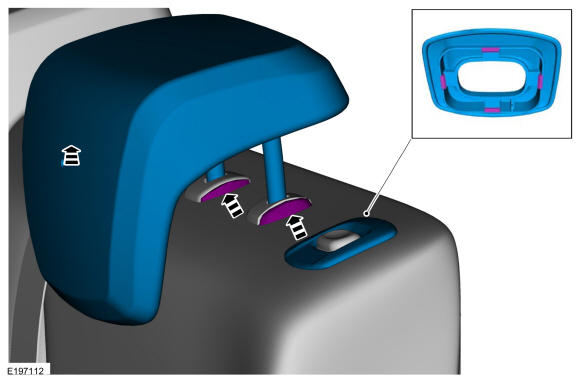

Press the locking buttons lift and remove the outboard head restraint. Remove the rear seat backrest latch bezel.

Courtesy of FORD MOTOR COMPANY

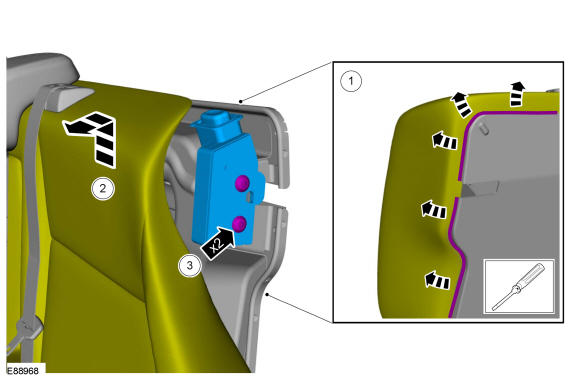

Remove the rear seat backrest latch.
1. Using a flat-bladed screwdriver, release the outboard backrest cover J-clip. Use the General Equipment: Flat-Bladed Screwdriver
2. Position the backrest cover and foam pad away from the backrest frame.
3. Remove the fasteners and the latch.
  Torque

  : 17 lb.ft (23 Nm)

Courtesy of FORD MOTOR COMPANY
