Rear Seat Backrest Cover: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: LH shown, RH similar.
  1. Remove the rear seat backrest. Refer to: Rear Seat Backrest  .
  2. If equipped, remove the rear seat armrest. Refer to: Rear Seat Armrest  .

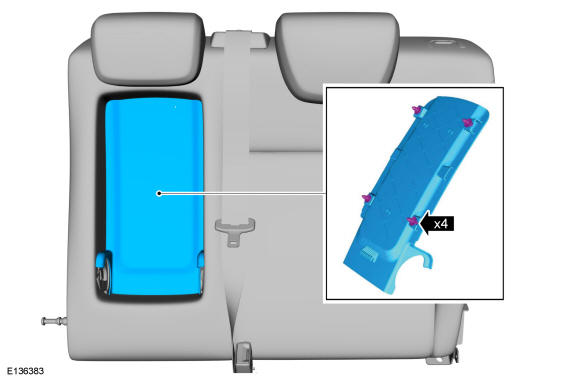

  3. Remove the rear seat armrest finish cover insert from the backrest frame.
    GFD270165Courtesy of FORD MOTOR COMPANY

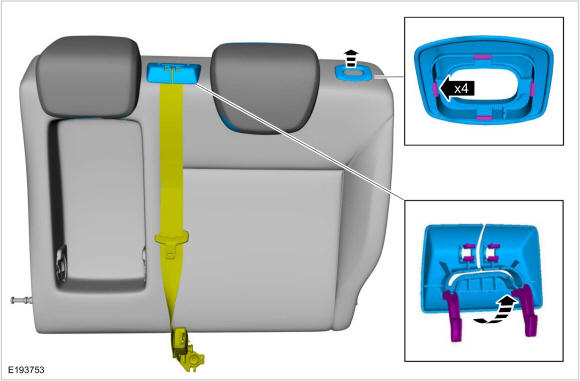

  4. Remove the rear seat center safety belt and backrest release latch bezels.
    GFD270166Courtesy of FORD MOTOR COMPANY
  5. Remove the rear head restraint guide sleeves. Refer to: Rear Head Restraint Guide Sleeve  .

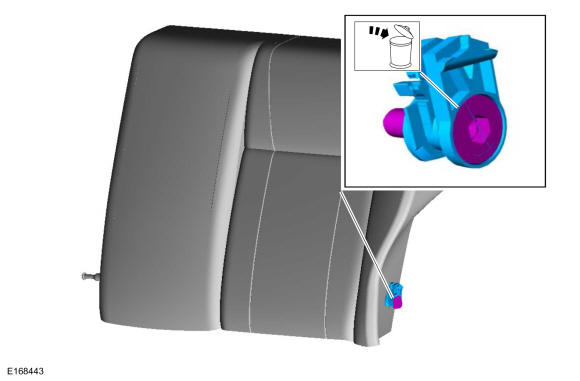

  6. Remove and discard the rear seat backrest hinge.
    GFD270167Courtesy of FORD MOTOR COMPANY

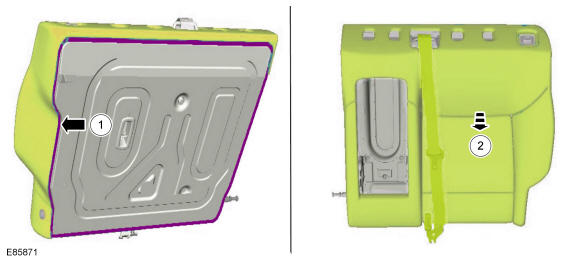

  7. Release the rear seat backrest cover from the backrest frame.

    1. Release the backrest cover J-clip.
    2. Position the backrest cover from the frame.

    GFD270168Courtesy of FORD MOTOR COMPANY

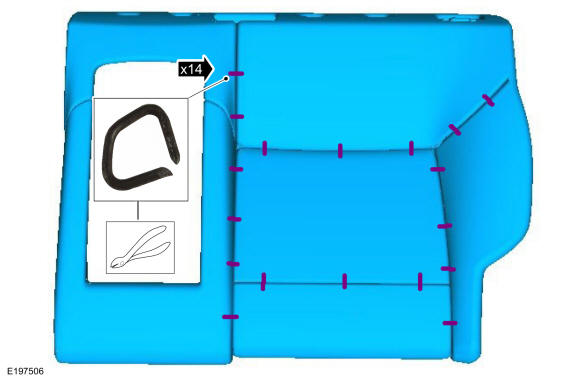

  8. Using side cutter pliers, remove the hog rings. Remove the backrest cover from the foam pad.
GFD270169Courtesy of FORD MOTOR COMPANY
