Rear Seat Armrest: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

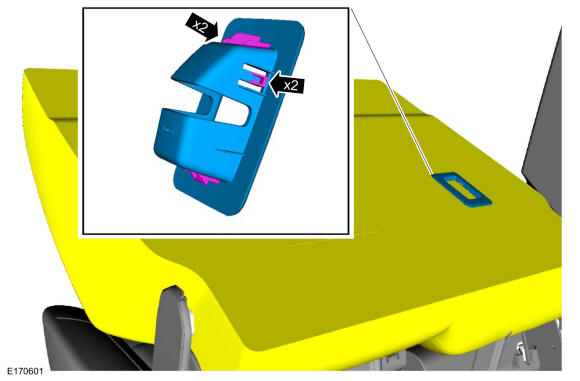

Remove the inboard child safety seat tether anchor bezel.

Courtesy of FORD MOTOR COMPANY

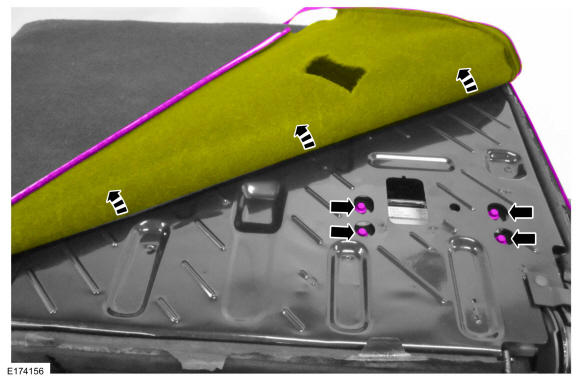

Release the seat backrest lower J-clip. Unzip the inboard seat backrest cover and remove the 4 armrest bolts.
Torque

: 80 lb.in (9.0 Nm)

Courtesy of FORD MOTOR COMPANY

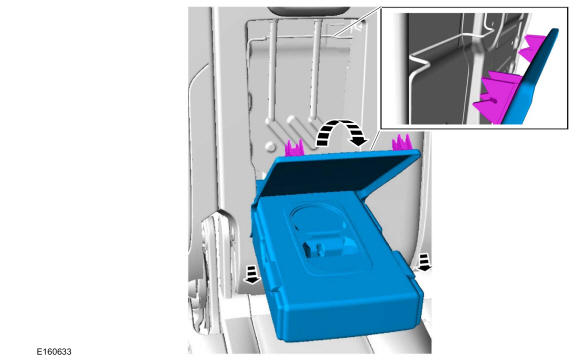

Position the armrest to access the armrest back panel, release the armrest locking clips from the seat backrest frame and remove the armrest.

Courtesy of FORD MOTOR COMPANY
