Heated Front Seat Module: Removal
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Driver seat shown, passenger seat similar.

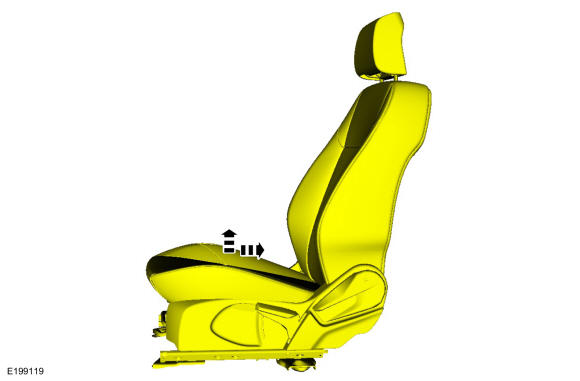

- Position the seat to access the heated seat module.
 Courtesy of FORD MOTOR COMPANY
|

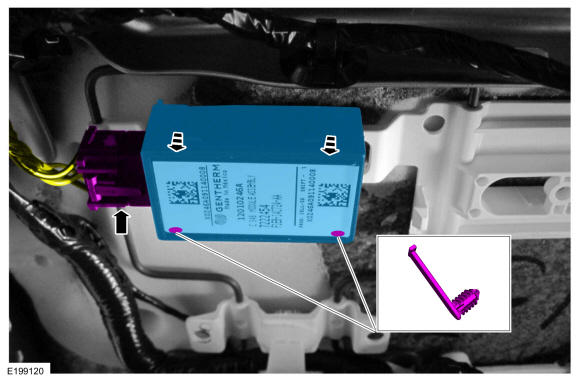

- Disconnect the electrical connector and remove the heated seat module.
 Courtesy of FORD MOTOR COMPANY
|
