Front Seat Track: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the front seat cushion and cover as an assembly. Refer to: Front Seat Cushion Cover .
  2. NOTE: This step is only necessary when the passenger seat is equipped with an original equipment original equipment OCS.

    Remove the OCS. Refer to: Occupant Classification System (OCS) Sensor .

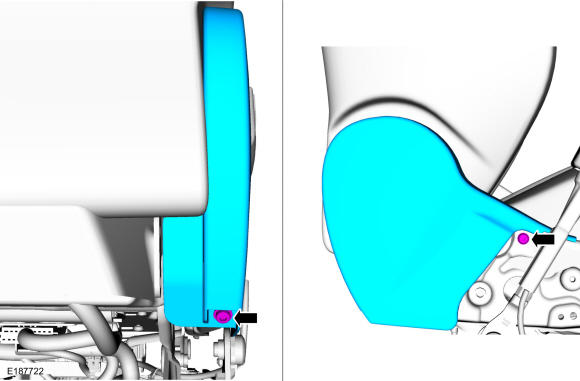

  3. Remove the screws and the recline cover.
    GFD270135Courtesy of FORD MOTOR COMPANY

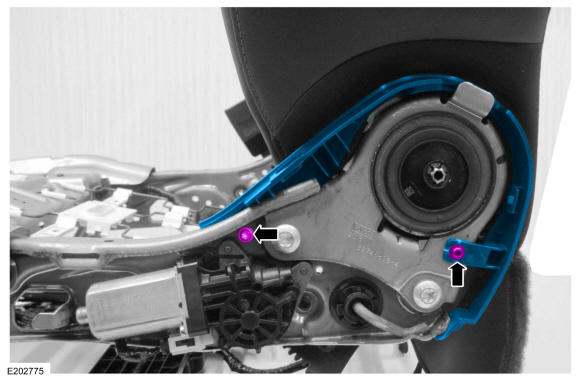

  4. Remove the screws and the seat track valance.
    GFD270136Courtesy of FORD MOTOR COMPANY

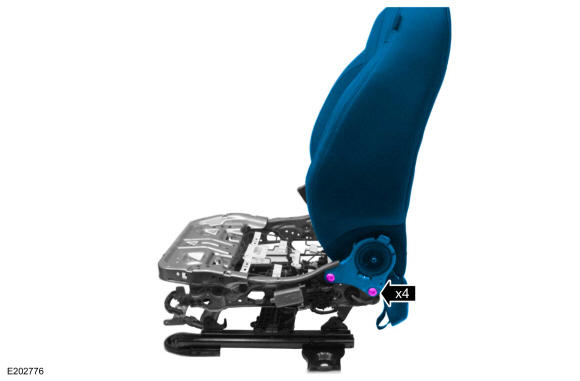

  5. Remove the bolts and the front seat backrest.

    Torque

    : 33 lb.ft (45 Nm)

GFD270137Courtesy of FORD MOTOR COMPANY
