Front Seat Power Lumbar Assembly: Removal
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Driver seat shown, passenger seat similar.
- Remove the front seat. Refer to: Front Seats .
-
NOTE: This step is only necessary when installing a new component.
Remove the head restraint guide sleeves. Refer to: Front Head Restraint Guide Sleeve .
-
NOTE: Cloth seat shown, other seats similar.
Detach the electrical connector pin-type retainer(s).
- Detach the backrest cover straps and position the backrest cover upward.
- Remove the backrest cover support.
- Detach the backrest cover J-clip.
- Position the backrest cover from between the seat cushion and the backrest cushion.
-
NOTE: Use care when separating the seat backrest trim cover from the hook-and-loop strips or the hook-and-loop strips may be torn from the seat backrest foam pad.
Release the hook-and-loop strips and begin inverting the backrest cover.
- Detach the side airbag deployment chute J-clip.
-
NOTE: Use care when separating the seat backrest trim cover from the hook-and-loop strips or the hook-and-loop strips may be torn from the seat backrest foam pad.
Release the hook-and-loop strips, pull the side airbag deployment chute through the backrest foam and continue inverting the backrest cover.
- Detach the J-clips and continue inverting the backrest cover.

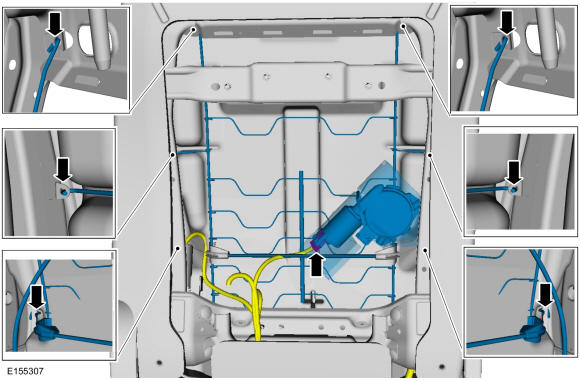

- Disconnect the electrical connector, release the J-hooks and remove the lumbar assembly.
