Front Seat Cushion Cover: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: The following procedure prescribes critical repair steps required for correct restraint system operation during a crash. Follow all notes and steps carefully. Failure to follow step instructions may result in incorrect operation of the restraint system and increases the risk of serious personal injury or death in a crash.
NOTE: To prevent system failure, carry out the OCS reset when a front passenger seat cushion is disassembled, a new trim cover is installed or an OCS service kit is installed. Use a scan tool to carry out the OCS reset command.
NOTE: The cushion heater mat on a front outboard passenger seat is not serviced separately. If a new cushion heater mat is needed on the front passenger seat, install an OCS service kit equipped with a heater mat. Failure to follow this instruction may result in incorrect operation of the OCS.
NOTE: OCS components (seat cushion foam pad, bladder with OCSM) are calibrated to each other and are serviced as an assembly. The OCS components are not to be installed separately. If a new OCS, OCS component or seat cushion foam pad are needed, a new OCS service kit (seat cushion foam pad, bladder with OCSM) must be installed as an assembly.
NOTE: Removal steps in this procedure may contain installation details.

All seats

  1. Remove the front seat. Refer to: Front Seat .

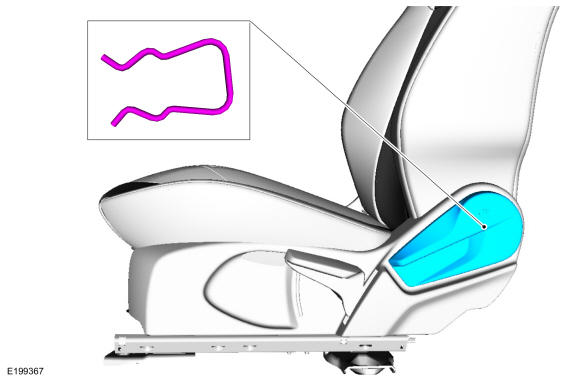

  2. Remove the clip and the recline handle.
    GFD270115Courtesy of FORD MOTOR COMPANY

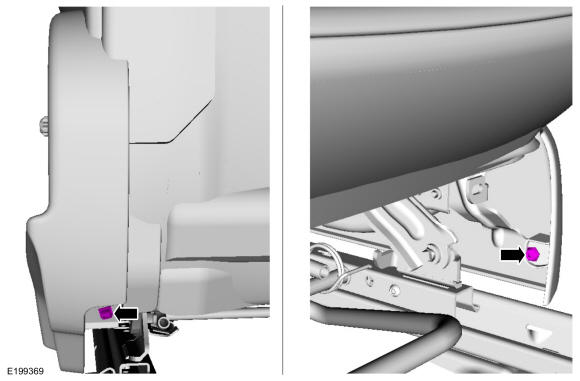

  3. Remove the side shield screws.
    GFD270116Courtesy of FORD MOTOR COMPANY

    Driver seat

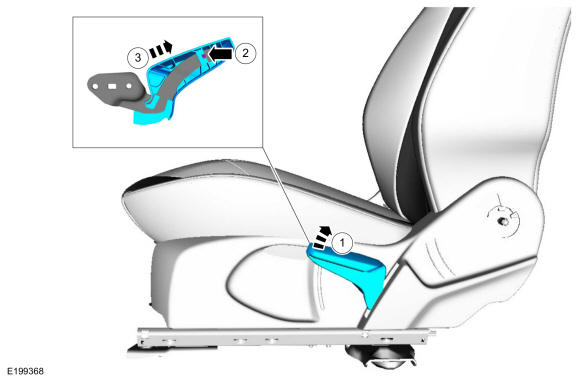

  4. If equipped, remove the height adjusting handle.

    1. Raise the height adjusting handle.
    2. Release the locking tab.
    3. Slide the height adjusting handle forward.

    GFD270117Courtesy of FORD MOTOR COMPANY

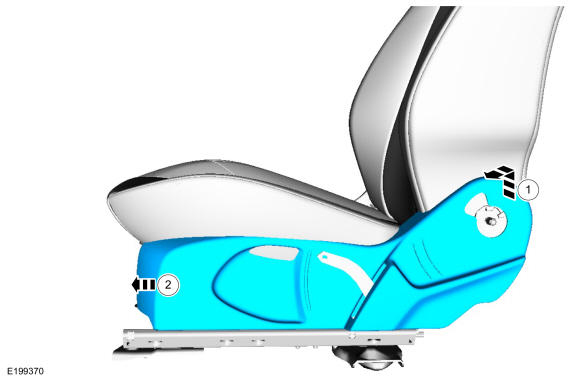

  5. Remove the side shield.

    1. Lift up on the rear of the side shield and pull out.
    2. Slide the side shield forward.

    GFD270118Courtesy of FORD MOTOR COMPANY

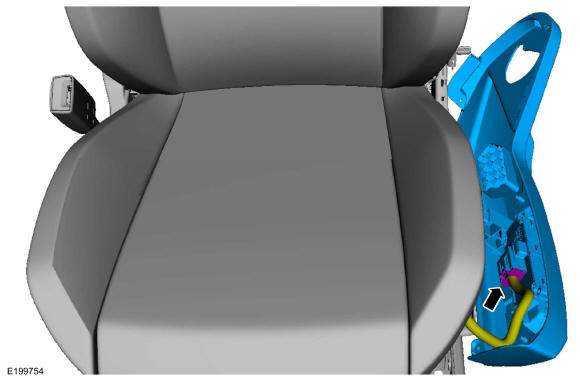

  6. If equipped, disconnect the electrical connector.
    GFD270119Courtesy of FORD MOTOR COMPANY

    Passenger seat

    1. Pull the rear of the cushion side shield out.
    2. Firmly grasp the cushion side shield, lift up and out, separating the cushion side shield from the recliner bracket.
    3. From underneath, squeeze the retainers together and pull out on the cushion side shield.
    4. Slide the cushion side shield forward and remove the cushion side shield.
    GFD270120Courtesy of FORD MOTOR COMPANY

    All seats

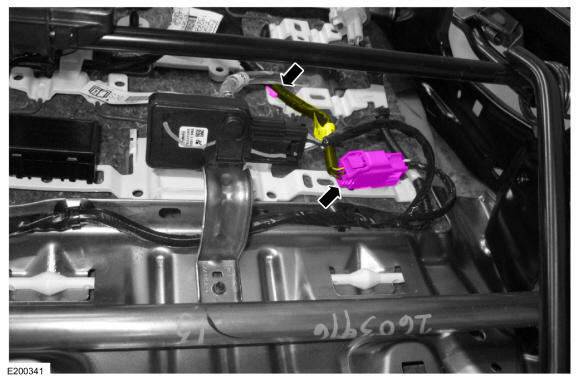

  8. If equipped, disconnect the cushion heater mat electrical connector and detach the wire harness retainer.
    GFD270121Courtesy of FORD MOTOR COMPANY
  9. Detach the electrical connector pin-type retainer(s).
    GFD270094Courtesy of FORD MOTOR COMPANY
  10. Detach the backrest cover straps and position the backrest cover upward.
    GFD270095Courtesy of FORD MOTOR COMPANY
  11. Detach the cushion cover J-clips and position the cushion cover upward.
    GFD270122Courtesy of FORD MOTOR COMPANY
    1. On both sides, detach the cushion cover J-clips.
    2. Detach the cushion cover J-clip.
    GFD270123Courtesy of FORD MOTOR COMPANY
  13. For passenger seat, lift the cushion foam. If the cushion foam and OCS are adhered together, the OCS is a service kit. If nothing is adhered together, the OCS is original equipment.
    GFD270124Courtesy of FORD MOTOR COMPANY

    Driver seat and passenger seat with original equipment OCS

  14. Remove the cushion foam pad and cover.
    GFD270125Courtesy of FORD MOTOR COMPANY

    Base passenger seat with OCS service kit

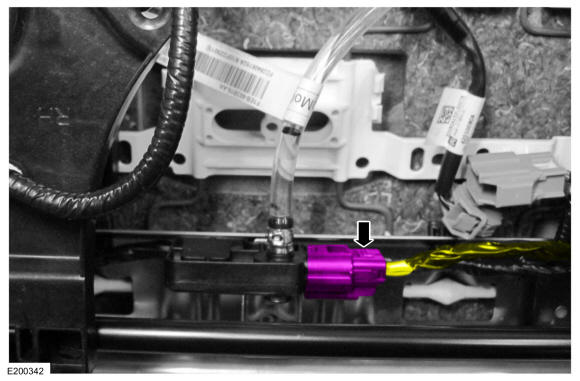

  15. Disconnect the OCS sensor electrical connector.
    GFD270126Courtesy of FORD MOTOR COMPANY

    Recaro® seat with OCS service kit

  16. NOTE: Follow the unique instructions or graphic for this step in the installation.

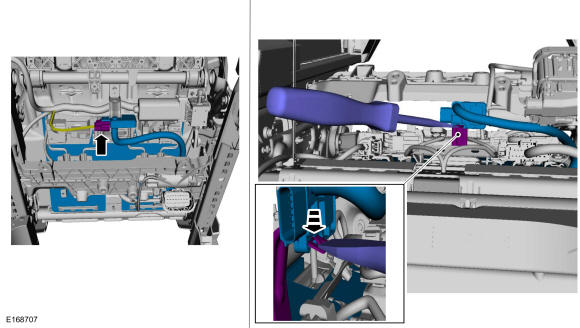

    Disconnect the OCS sensor electrical connector, bend the bracket tab away and slide the OCS sensor off the bracket.

    GFD270127Courtesy of FORD MOTOR COMPANY

    Passenger seat with OCS service kit

  17. NOTE: Original equipment OCS shown, service kit similar.

    Remove the pin-type retainers and raise the front of the OCS bladder.

    GFD270128Courtesy of FORD MOTOR COMPANY

    Base passenger seat with OCS service kit

  18. Remove the OCS sensor bracket screw.

    Torque

    : 44 lb.in (5 Nm)

    GFD270129Courtesy of FORD MOTOR COMPANY
  19. NOTE: Note the location of the OCS hose and heater mat pigtail as it passes through the seat cushion support for proper installation.

    Route out the OCS hose, sensor, sensor bracket and heated seat cushion mat wiring pigtail (if equipped) from between the seat cushion support wires and remove the OCS.

    GFD270130Courtesy of FORD MOTOR COMPANY

    Recaro® seat with OCS service kit

  20. NOTE: Note the location of the OCS hose and heater mat pigtail as it passes through the seat cushion support for proper installation.

    Route out the OCS hose, sensor, and heated seat cushion mat wiring pigtail (if equipped) and remove the OCS.

    GFD270131Courtesy of FORD MOTOR COMPANY

    All seats

  21. Release the hook-and-loop retainer and position the cushion cover aside.
    GFD270132Courtesy of FORD MOTOR COMPANY
  22. NOTE: Use care when separating the seat cushion from the hook-and-arrow or the hook may be torn from the seat cushion foam pad.
    NOTE: Use care when separating the seat cushion trim cover from the hook-and-loop strips or the hook-and-loop strips may be torn from the seat cushion foam pad.

    Remove the seat cushion cover.

    1. Invert the seat cushion cover.
    2. Release the hook and arrows.
    3. Release hook-and-loop strips.

GFD270133Courtesy of FORD MOTOR COMPANY
