Front Seat Control Switch: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the side shield screws.
    GFD270111Courtesy of FORD MOTOR COMPANY

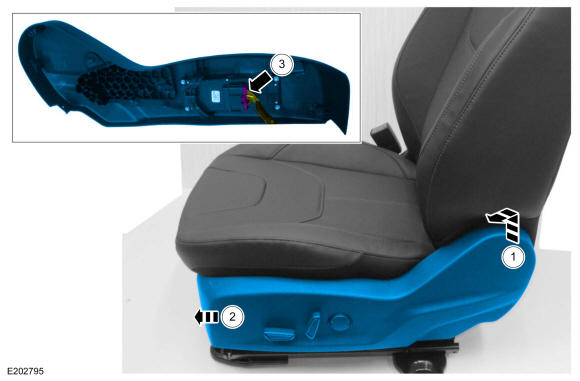

  2. Remove the side shield.

    1. Lift up on the rear of the side shield and pull outward.
    2. Push the side shield forward.
    3. Disconnect the electrical connector.

    GFD270112Courtesy of FORD MOTOR COMPANY
  3. Remove the seat control switch knob(s).
    GFD270113Courtesy of FORD MOTOR COMPANY

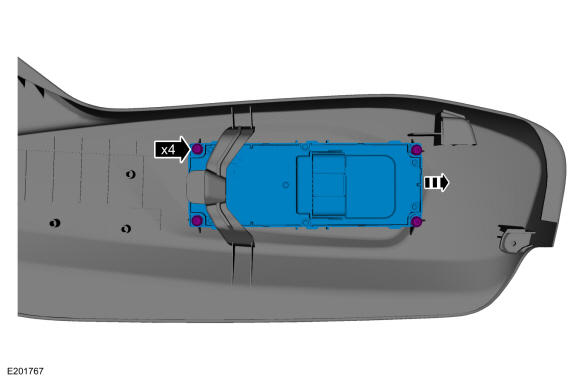

  4. Remove the screws and the seat control switch.
GFD270114Courtesy of FORD MOTOR COMPANY
