Front Seat Backrest Cover: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Front seat backrest trim covers installed on seats equipped with seat side airbags cannot be repaired. A new trim cover must be installed. Cleaning is permissible. Failure to follow these instructions may result in the seat side airbag deploying incorrectly and increase the risk of serious personal injury or death in a crash.

NOTE: Driver seat shown, passenger seat similar.

Remove the front seat. Refer to: Front Seat .
NOTE: This step is only necessary when installing a new component.

Remove the head restraint guide sleeves. Refer to: Front Head Restraint Guide Sleeve .
NOTE: Cloth seat shown, other seats similar.

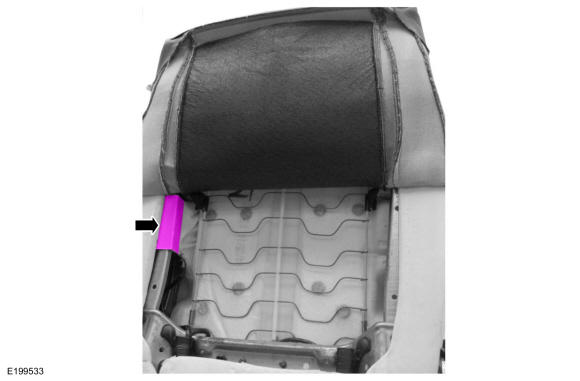

Detach the electrical connector pin-type retainer(s).

Courtesy of FORD MOTOR COMPANY

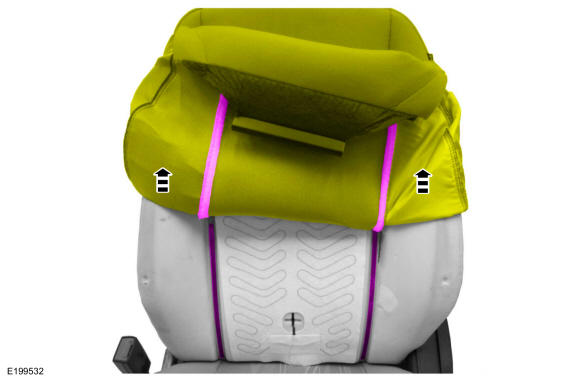

Detach the backrest cover straps and position the backrest cover upward.

Courtesy of FORD MOTOR COMPANY

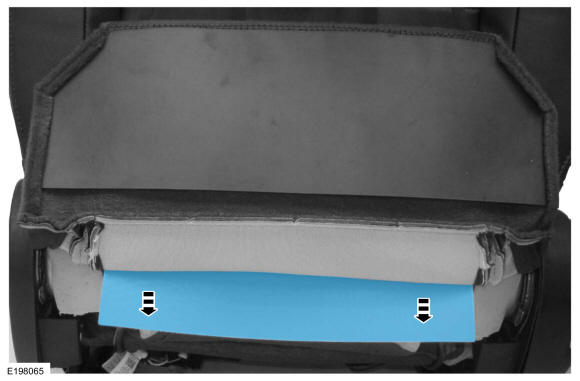

Remove the backrest cover support.

Courtesy of FORD MOTOR COMPANY

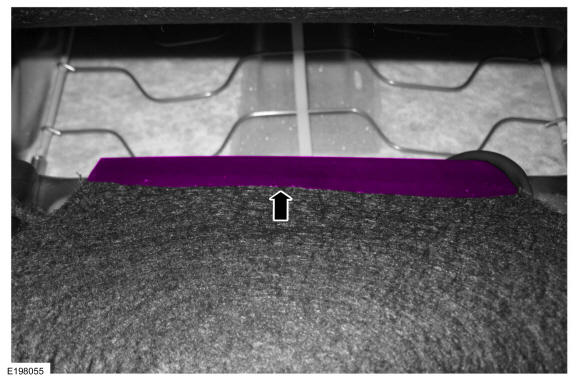

Detach the backrest cover J-clip.

Courtesy of FORD MOTOR COMPANY

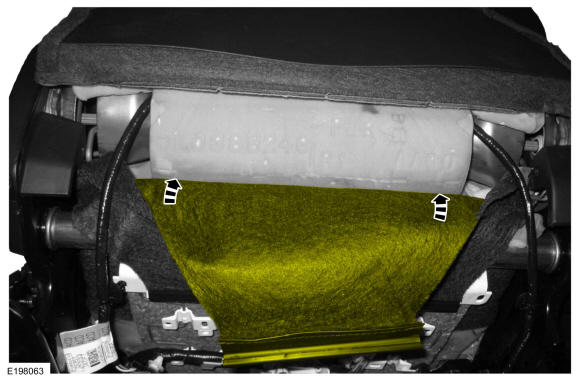

Position the backrest cover from between the seat cushion and the backrest cushion.

Courtesy of FORD MOTOR COMPANY
NOTE: Use care when separating the seat backrest trim cover from the hook-and-loop strips or the hook-and-loop strips may be torn from the seat backrest foam pad.

Release the hook-and-loop strips and begin inverting the backrest cover.

Courtesy of FORD MOTOR COMPANY
Detach the side airbag deployment chute J-clip.

Courtesy of FORD MOTOR COMPANY
NOTE: Use care when separating the seat backrest trim cover from the hook-and-loop strips or the hook-and-loop strips may be torn from the seat backrest foam pad.

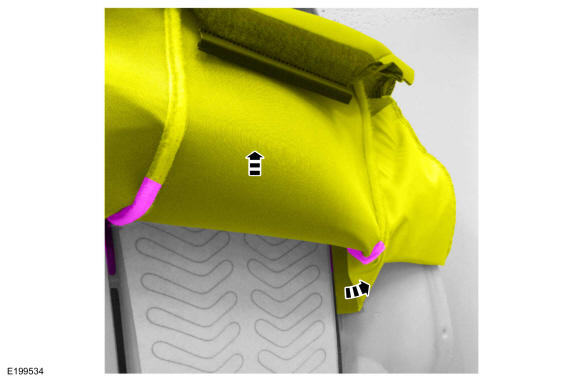

Release the hook-and-loop strips, pull the side airbag deployment chute through the backrest foam and continue inverting the backrest cover.

Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

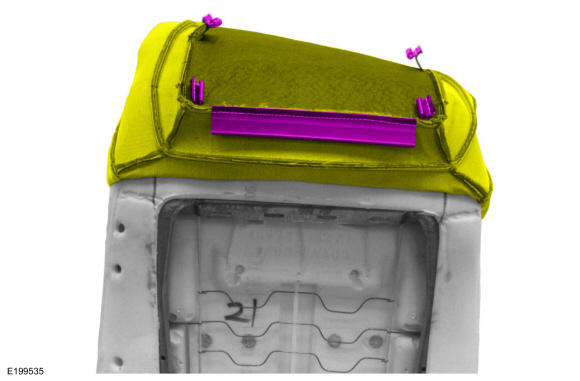

Detach the J-clips and continue inverting the backrest cover.

Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

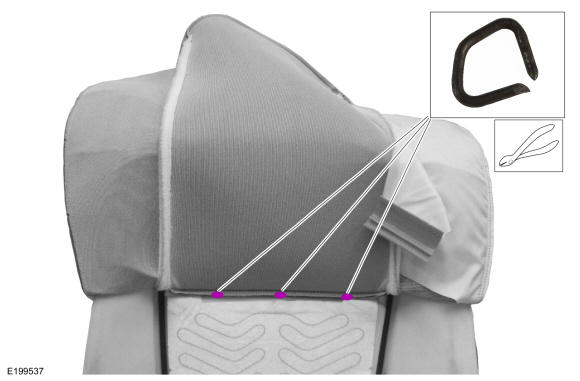

Remove the hog rings.

Courtesy of FORD MOTOR COMPANY
NOTE: Use care when separating the seat backrest trim cover from the hook-and-loop strips or the hook-and-loop strips may be torn from the seat backrest foam pad.

NOTE: This step is only necessary when installing a new component.

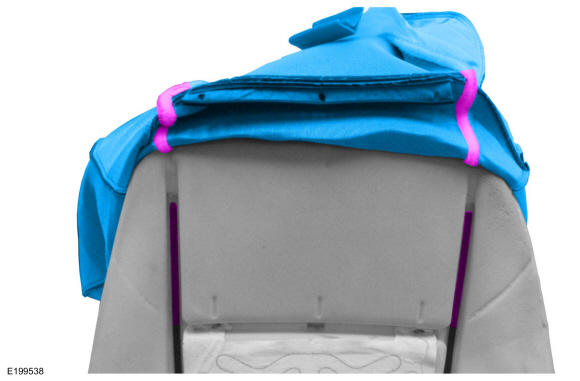

Release the hook-and-loop strips and remove the backrest cover.

Courtesy of FORD MOTOR COMPANY
