Front Seat Backrest Cover - Vehicles With: Recaro Seats: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Front seat backrest trim covers installed on seats equipped with seat side airbags cannot be repaired. A new trim cover must be installed. Cleaning is permissible. Failure to follow these instructions may result in the seat side airbag deploying incorrectly and increase the risk of serious personal injury or death in a crash.

NOTE: Driver seat shown, passenger seat similar.

Remove the front seat. Refer to: Front Seat .
NOTE: This step is only necessary when installing a new component.

Remove the head restraint guide sleeves. Refer to: Front Head Restraint Guide Sleeve .
Detach the electrical connector pin-type retainer(s).

Courtesy of FORD MOTOR COMPANY
Detach the backrest cover straps and position the backrest cover upward.

Courtesy of FORD MOTOR COMPANY
Detach the backrest cover J-clip.

Courtesy of FORD MOTOR COMPANY

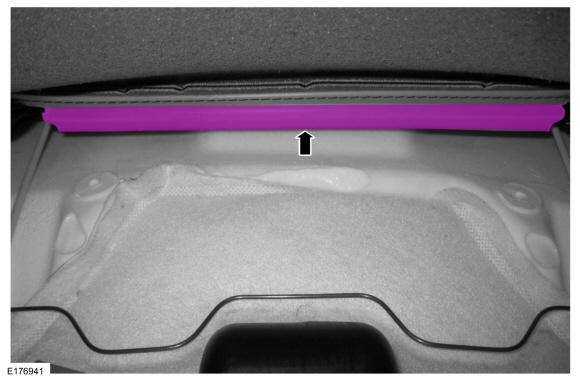

Position the backrest cover from between the seat cushion and the backrest cushion.

Courtesy of FORD MOTOR COMPANY
NOTE: Use care when separating the seat backrest trim cover from the hook-and-loop strips or the hook-and-loop strips may be torn from the seat backrest foam pad.

NOTE: Use care when separating the backrest cover from the hook-and-arrows, or the hooks can be torn from the backrest foam pad.

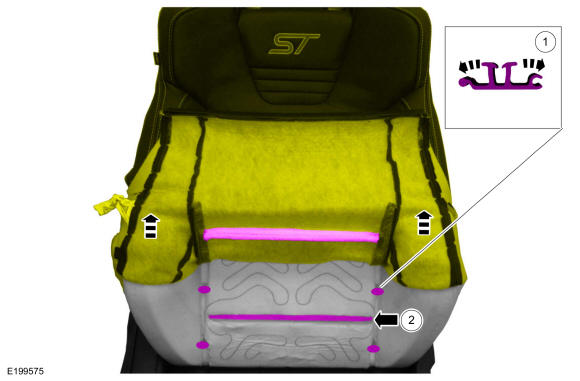

Begin inverting the backrest cover.
1. Release the hook-and-arrow.
2. Release the hook-and-loop strips.
Courtesy of FORD MOTOR COMPANY

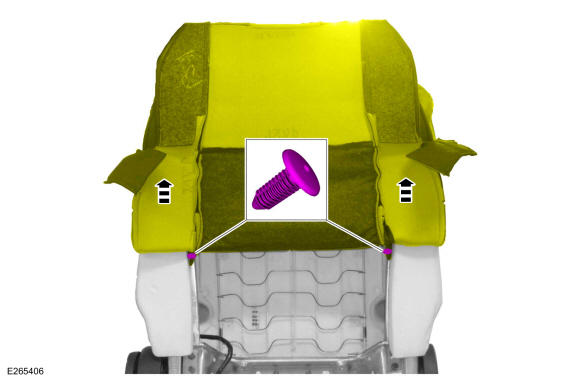

Remove the pin-type retainers and continue inverting the backrest cover.

Courtesy of FORD MOTOR COMPANY
NOTE: Use care when separating the seat backrest trim cover from the hook-and-loop strips or the hook-and-loop strips may be torn from the seat backrest foam pad.

NOTE: Use care when separating the backrest cover from the hook-and-arrows, or the hooks can be torn from the backrest foam pad.

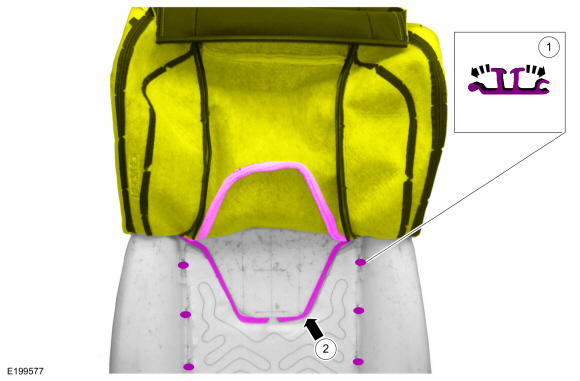

Continue inverting the backrest cover.
1. Release the hook-and-arrows.
2. Release the hook-and-loop strips.
Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

Detach the J-clip from the backrest frame.

Courtesy of FORD MOTOR COMPANY
NOTE: Use care when separating the seat backrest trim cover from the hook-and-loop strips or the hook-and-loop strips may be torn from the seat backrest foam pad.

NOTE: This step is only necessary when installing a new component.

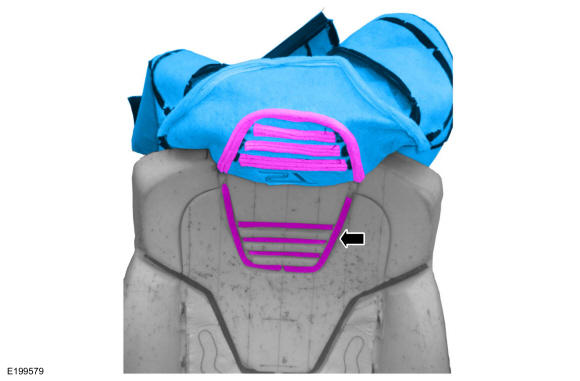

Release the hook-and-loop strips and remove the backrest cover.

Courtesy of FORD MOTOR COMPANY
