Front Head Restraint Guide Sleeve: Removal
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Typical head restraint guide sleeve shown, others similar.

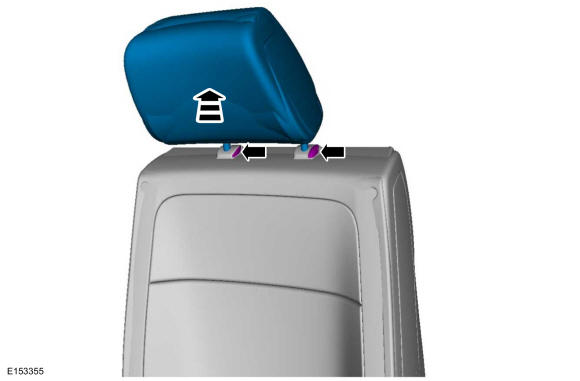

- Depress the locking tabs and remove the head restraint.
-
NOTE: Seat backrest cushion removed for clarity.

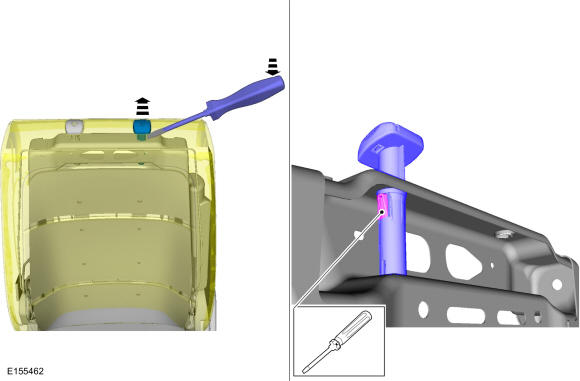

Remove the headrest restraint guide sleeves. Use the General Equipment: Flat Headed Screw Driver
- Discard the head restraint guide sleeves.
