Rocker Panel Moulding: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT ELECTRIC) . Failure to follow this instruction may result in serious personal injury.

    Refer to: Health and Safety Precautions .

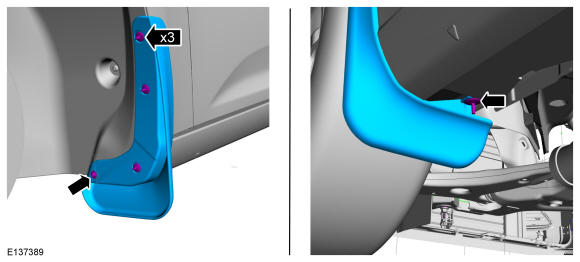

  2. If equipped. Remove the pushpin type retainers and the mud flap.
    GFD270037Courtesy of FORD MOTOR COMPANY

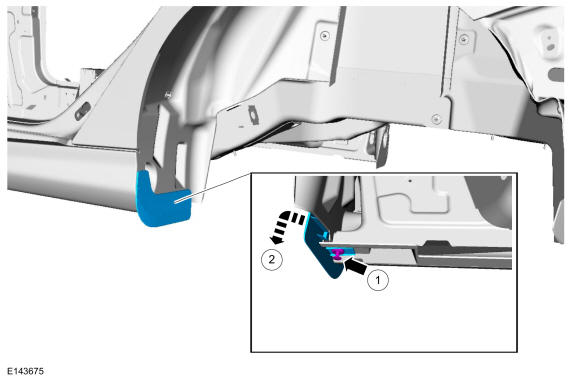

  3. If equipped. Remove the mud flap.

    1. Remove the retainers.
    2. Remove the mud flap.

    GFD270038Courtesy of FORD MOTOR COMPANY

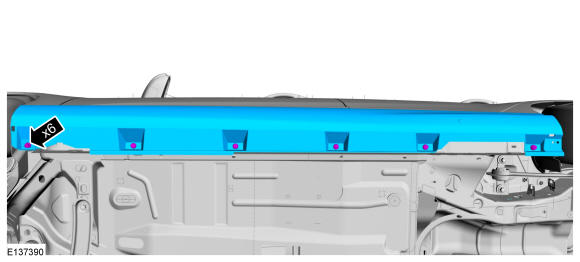

  4. Remove the pushpin type retainers.
    GFD270039Courtesy of FORD MOTOR COMPANY

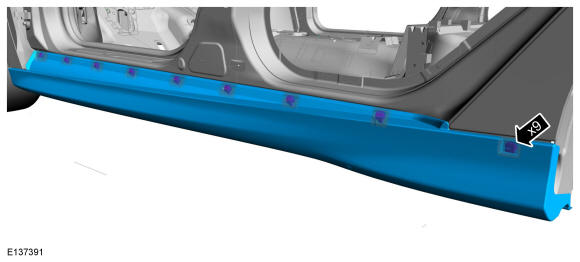

  5. NOTE: Transfer any clips that stay attached to the body, back to the rocker panel moulding prior to installing the rocker panel moulding back on the vehicle.

    Release the clips and remove the rocker panel moulding.

GFD270040Courtesy of FORD MOTOR COMPANY
