Rear Spoiler - 5-Door: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps may include installation details.

WARNING: Before beginning any service procedure in this article, REFER to Safety Warnings in GENERAL INFORMATION (EXCEPT ELECTRIC) . Failure to follow this instruction may result in serious personal injury.

Refer to: Health and Safety Precautions .

NOTE: Base model shown, all others mount the same.

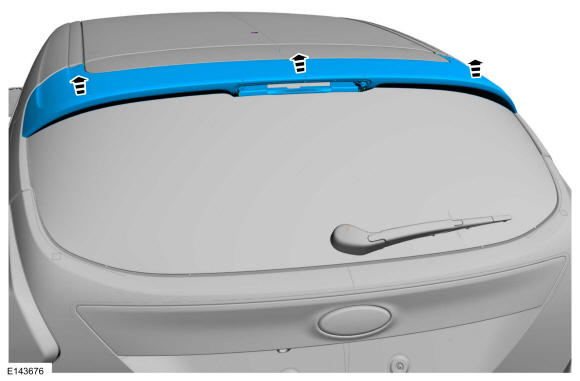

Release the clips and remove the upper liftgate trim panel.

Courtesy of FORD MOTOR COMPANY
Remove the nuts.
1. Remove the LH and RH corner nuts.
  Torque

  : 13 lb.in (1.5 Nm)
2. Remove the centre nuts.
  Torque

  : 48 lb.in (5.4 Nm)
Courtesy of FORD MOTOR COMPANY
Remove the rear spoiler.

Courtesy of FORD MOTOR COMPANY
