Rear Spoiler - 4-Door: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the luggage compartment trim panel.
    GFD269808Courtesy of FORD MOTOR COMPANY

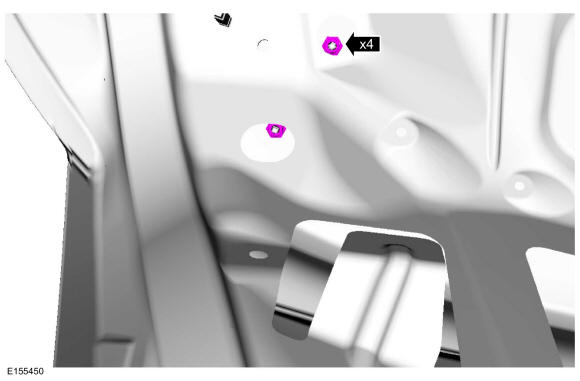

  2. NOTE: LH side shown, RH side similar.

    Torque

    : 48 lb.in (5.4 Nm)

    GFD270026Courtesy of FORD MOTOR COMPANY

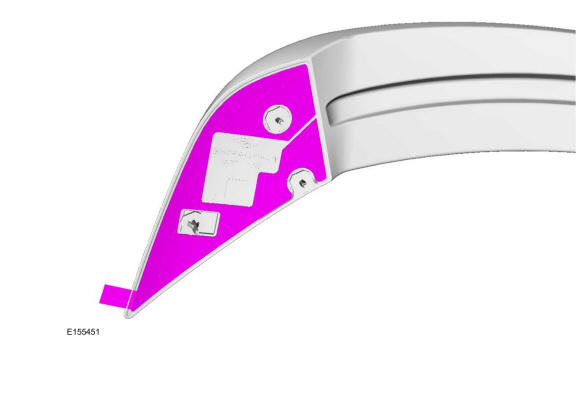

  3. NOTE: The rear spoiler is held on by double-sided tape.
    NOTE: LH side shown, RH side similar.

    Using a non-metallic fishing line or equivalent, cut the double-sided tape on both sides.

GFD270027Courtesy of FORD MOTOR COMPANY

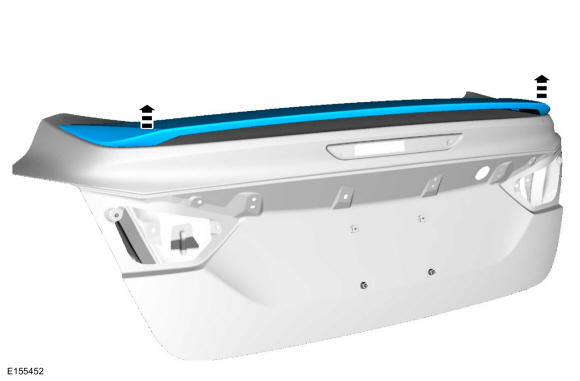

GFD270028Courtesy of FORD MOTOR COMPANY
