Rear Spoiler - 4-Door: Installation

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
  1. To install, reverse the removal procedure.

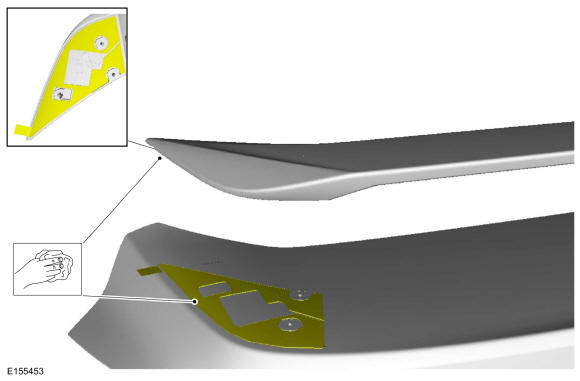

  2. NOTE: LH side shown, RH side similar.

    If luggage compartment lid spoiler is being replaced, only the luggage compartment lid surface will need to be cleaned.

    GFD270029Courtesy of FORD MOTOR COMPANY

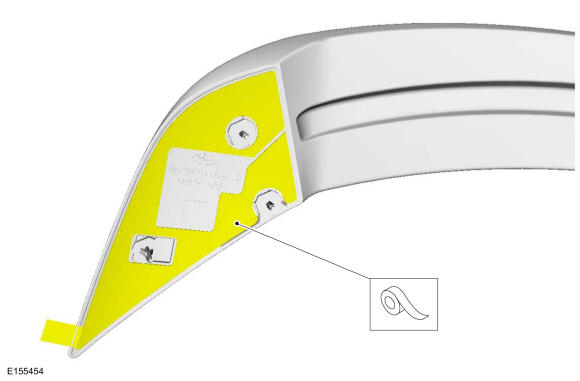

  3. NOTE: LH side shown, RH side similar.

    If installing the original luggage compartment lid spoiler, apply double-sided tape to the location shown.

GFD270030Courtesy of FORD MOTOR COMPANY
