Rear Door Upper Moulding: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Position aside the glass run weatherstrip.

    • Remove the 3 screws and remove the rear moulding.

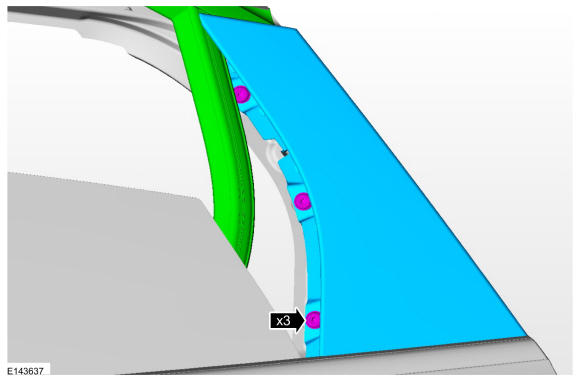

    GFD270024Courtesy of FORD MOTOR COMPANY
  2. Remove the rear door window glass. Refer to: Rear Door Window Glass .
  3. Position aside the glass run weatherstrip.

    • Remove the 3 screws and remove the front moulding.

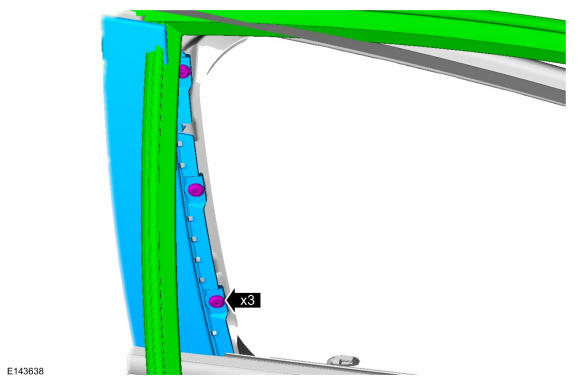

GFD270025Courtesy of FORD MOTOR COMPANY
