Front Door Upper Moulding: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Vehicles With: Keyless Entry

Remove the LHF door trim panel. Refer to: Front Door Trim Panel .

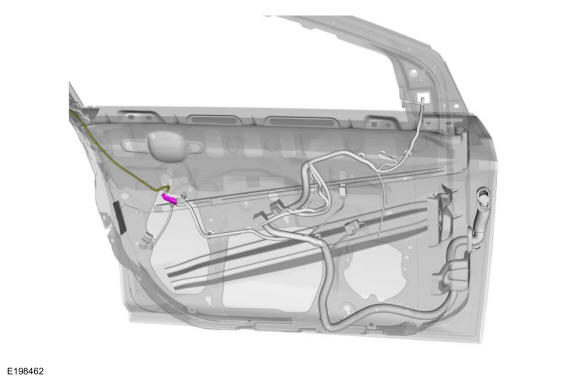

Disconnect the keypad electrical connector.

Courtesy of FORD MOTOR COMPANY

All vehicles

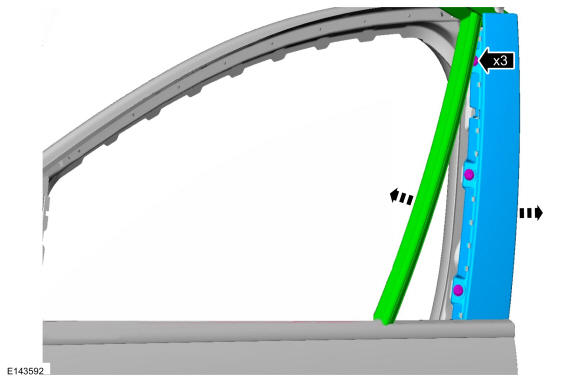

Position aside the glass run weatherstrip.
1. Remove the 3 screws and remove the moulding.

Courtesy of FORD MOTOR COMPANY
