Rear Door Trim Panel: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

Vehicles with manual windows

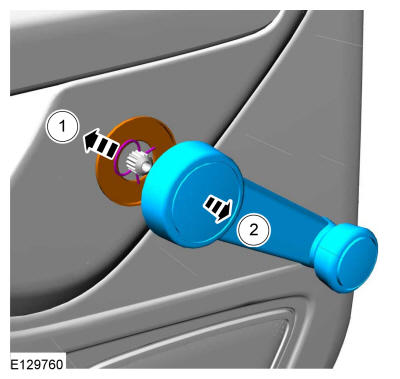

  1. Remove the window regulator handle.

    1. Remove the retaining clip.
    2. Remove the window regulator handle and the spacer.

    GFD270014Courtesy of FORD MOTOR COMPANY
  2. Release the clips and remove the door trim panel bezel.
    GFD270015Courtesy of FORD MOTOR COMPANY

    Vehicles with power windows

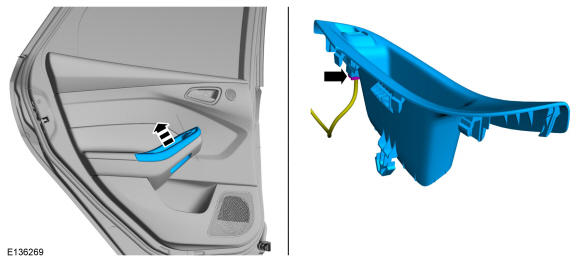

  3. Release the clips, disconnect the electrical connector and remove the door trim panel bezel.
    GFD270016Courtesy of FORD MOTOR COMPANY

    All vehicles

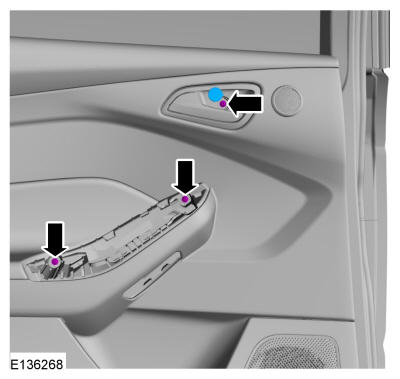

  4. Remove the cover and the door trim panel retainer.
    GFD270017Courtesy of FORD MOTOR COMPANY

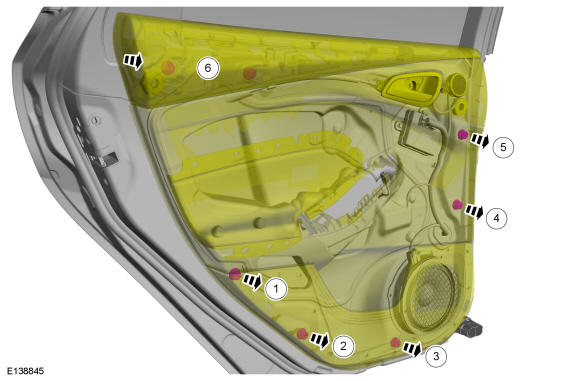

  5. Release the clips and position aside the door trim panel. Use the General Equipment: Interior Trim Remover
    GFD270018Courtesy of FORD MOTOR COMPANY

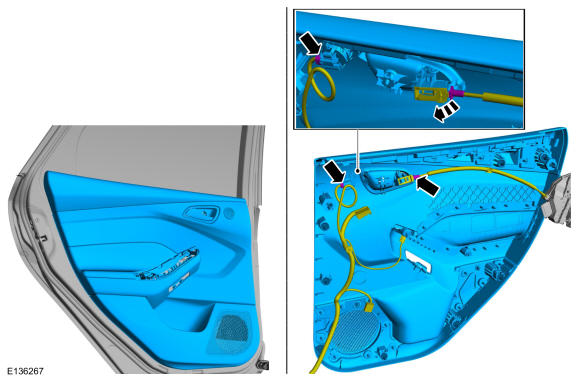

  6. Remove the rear door trim panel.

    • Disconnect the trim panel electrical connectors.

    • Disconnect the latch cable and remove the rear door trim panel.

GFD270019Courtesy of FORD MOTOR COMPANY
