Liftgate Trim Panel - 5-Door: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

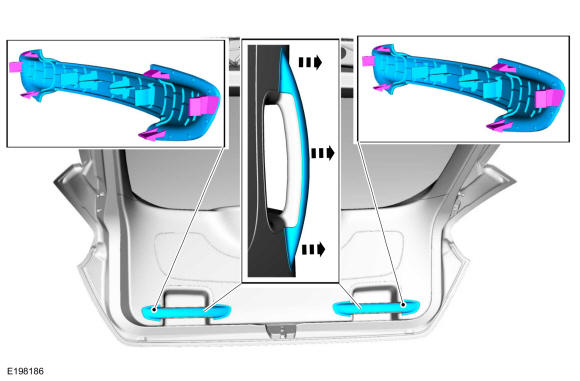

  1. Release the clips and remove the liftgate handle covers.
    GFD270007Courtesy of FORD MOTOR COMPANY

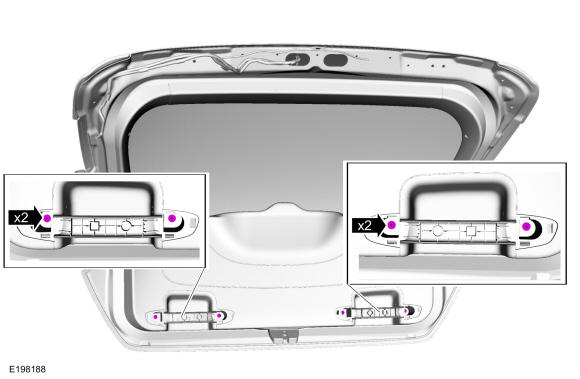

  2. Remove the retainers.
    GFD270008Courtesy of FORD MOTOR COMPANY

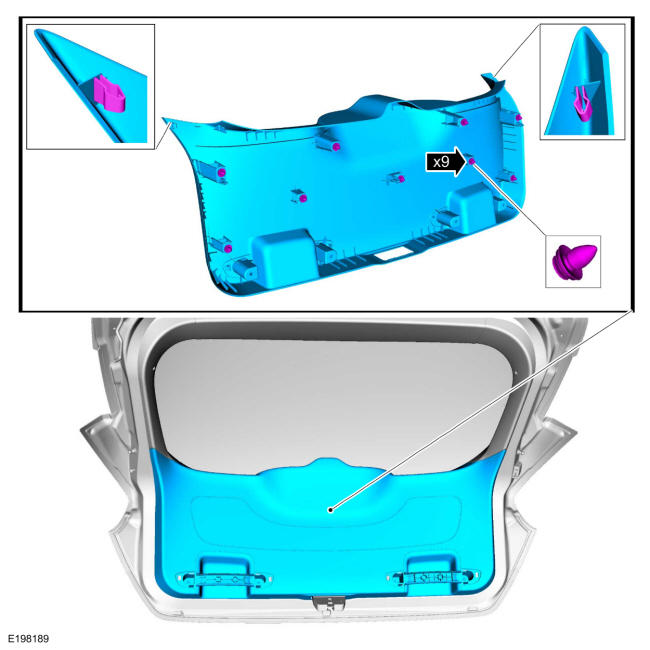

  3. Release the clips and remove the liftgate lower trim panel.
    GFD270009Courtesy of FORD MOTOR COMPANY

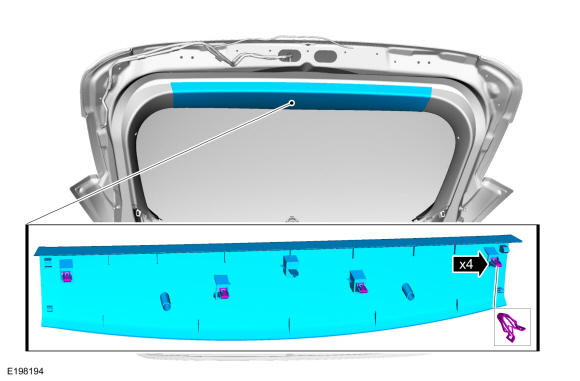

  4. Release the clips and remove the liftgate upper center trim panel.
    GFD270010Courtesy of FORD MOTOR COMPANY

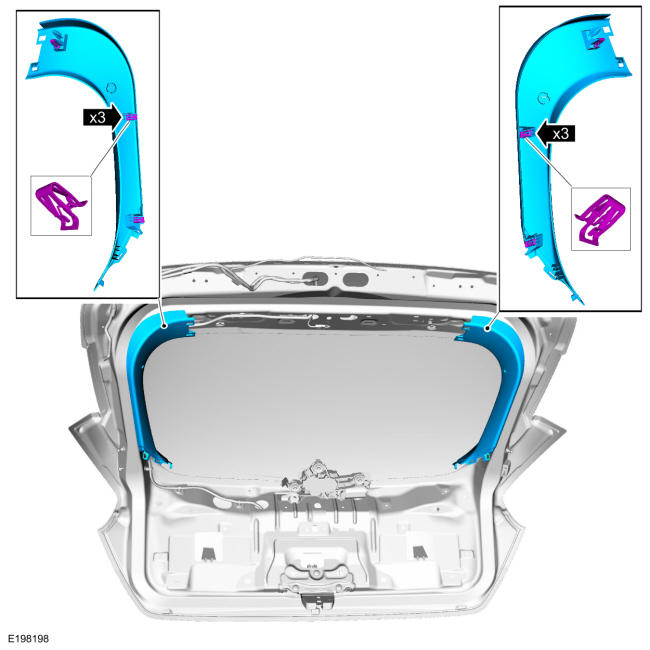

  5. Release the clips and remove the liftgate upper side trim panels.
GFD270011Courtesy of FORD MOTOR COMPANY
