Headliner - 5-Door: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Do not bend or crease the headliner during removal and installation. Failure to follow this will result in damage to the headliner.
NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT ELECTRIC) . Failure to follow this instruction may result in serious personal injury.

    Refer to: Health and Safety Precautions .

  2. Remove the retainers and the RH kick panel.
    GFD269419Courtesy of FORD MOTOR COMPANY
  3. Position aside the weather strip, release the clips and remove the RH instrument panel side trim panel.
    GFD269418Courtesy of FORD MOTOR COMPANY
  4. Remove glove box retainers.

    1. Open glovebox door.
    2. Remove the glovebox retainers.

    GFD269992Courtesy of FORD MOTOR COMPANY
  5. Release the clips and remove the glovebox.
    GFD269993Courtesy of FORD MOTOR COMPANY
  6. Disconnect the headliner electrical connectors, release the retainers and position aside.
    GFD269994Courtesy of FORD MOTOR COMPANY
  7. On both sides, remove the A-pillar trim panel. Refer to: A-Pillar Trim Panel  .

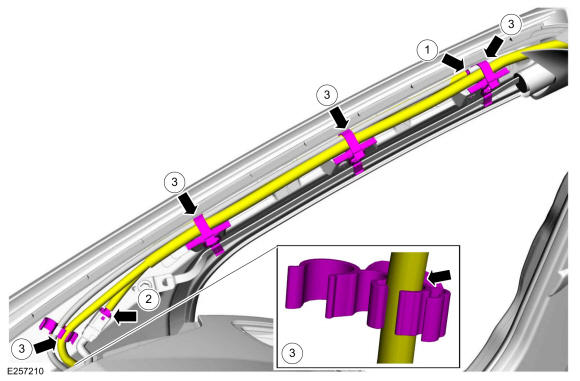

  8. On RH side. Position the headliner wiring harness and rear washer hose aside.

    1. Disconnect the rear washer hose. Refer to: Washer Hose Coupling .
    2. Disconnect the headliner wiring harness electrical connector.
    3. Release the headliner wiring harness from the clips.

    GFD270002Courtesy of FORD MOTOR COMPANY

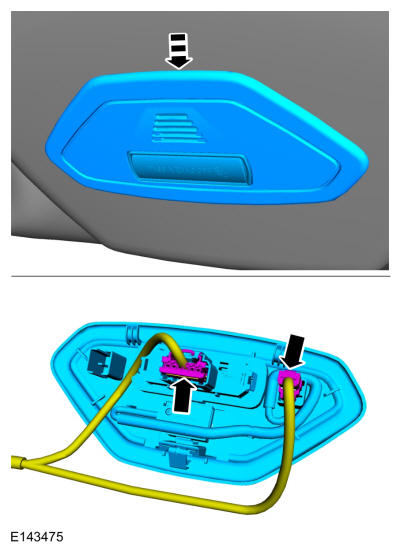

  9. If equipped. Remove the dome lamp and disconnect the electrical connectors.
    GFD270003Courtesy of FORD MOTOR COMPANY
  10. If equipped, remove the overhead console. Refer to: Overhead Console .
  11. If equipped. Remove the rear view mirror covers.
    GFD269997Courtesy of FORD MOTOR COMPANY
  12. If equipped. Disconnect the electrical connectors.
    GFD269998Courtesy of FORD MOTOR COMPANY
  13. NOTE: LH side shown, RH side similar.

    On both sides. Position aside the upper B-pillar trim panel.

    • Remove the retainer cover and the upper B-pillar retainer.

    • Position aside the weatherstrip, release the clips and position aside the upper B-pillar trim panel.

    GFD269554Courtesy of FORD MOTOR COMPANY
  14. On both sides, remove the D-pillar trim panel. Refer to: D-Pillar Trim Panel - 5-Door  .
  15. On both sides. Remove the retainers, disconnect the electrical connector and remove the sun visors.
    GFD269555Courtesy of FORD MOTOR COMPANY
  16. NOTE: Assist handle shown, garment hooks similar.

    Remove retainers and all assist handles and all garment hooks.

    GFD269556Courtesy of FORD MOTOR COMPANY

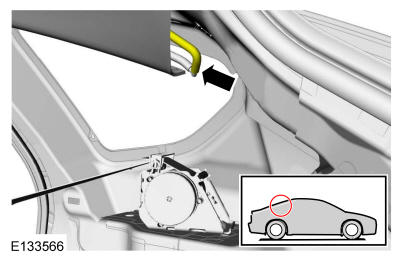

  17. Disconnect rear washer hose.
    GFD269557Courtesy of FORD MOTOR COMPANY

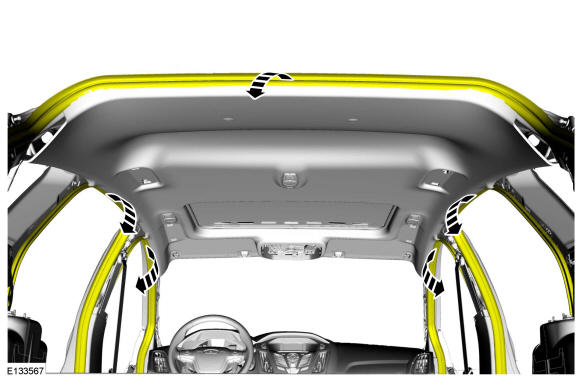

  18. Position aside the front door, the rear door and the liftgate weatherstrip.
    GFD269558Courtesy of FORD MOTOR COMPANY

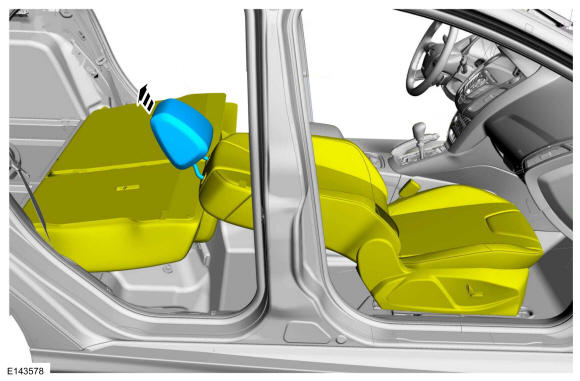

  19. Remove the LH front seat. Refer to: Front Seat .
  20. Position the seats as shown.

    • Remove the RH seat head restraint.

    • Position both second row seats in the fold-flat position and front RH seat in the full reclined position.

    GFD270004Courtesy of FORD MOTOR COMPANY

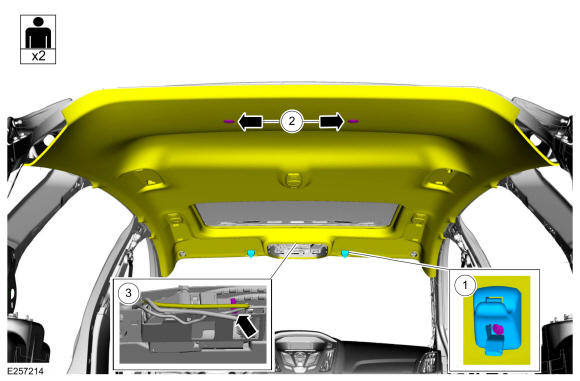

  21. With the help of an assistant, lower the headliner.

    1. On both sides. Remove the retainers and the sun visor clips.
    2. Remove the rear pin-type retainers.
    3. If equipped. Disconnect the roof opening panel motor electrical connector.

    GFD270005Courtesy of FORD MOTOR COMPANY

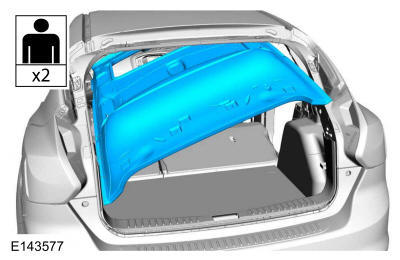

  22. With the help of an assistant, remove the headliner.
GFD270006Courtesy of FORD MOTOR COMPANY
