Front Door Trim Panel: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.

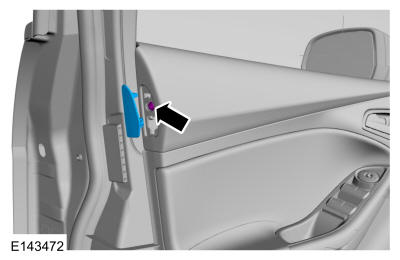

  1. Remove the screw cover and the upper door trim panel screw.
    GFD269985Courtesy of FORD MOTOR COMPANY

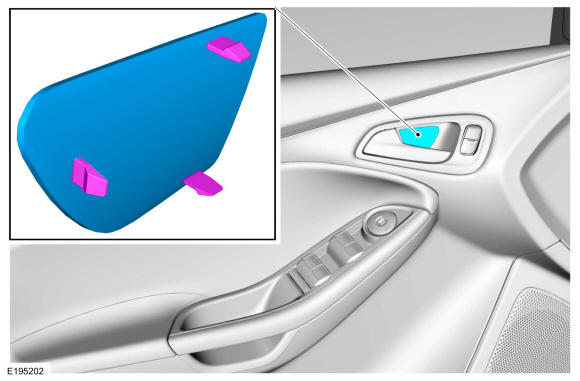

  2. Release the clips and remove the interior door handle screw cover.
    GFD269986Courtesy of FORD MOTOR COMPANY

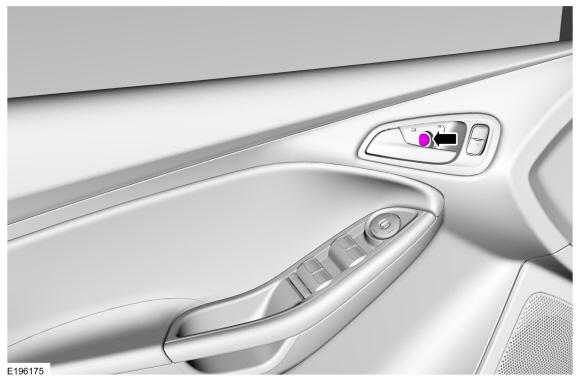

  3. Remove the interior door handle retainer.
    GFD269987Courtesy of FORD MOTOR COMPANY
  4. Remove the front door window control switch. Refer to: Front Door Window Control Switch .

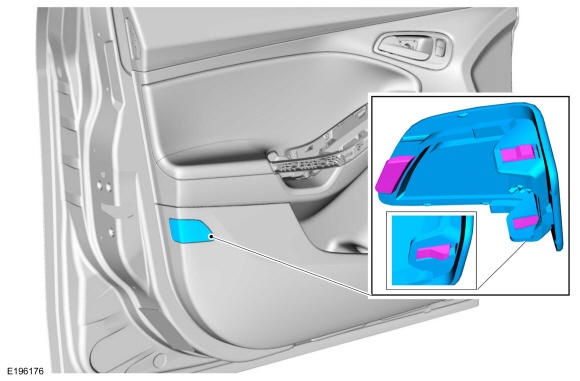

  5. Release the clips and remove the door trim panel screw cover.
    GFD269988Courtesy of FORD MOTOR COMPANY

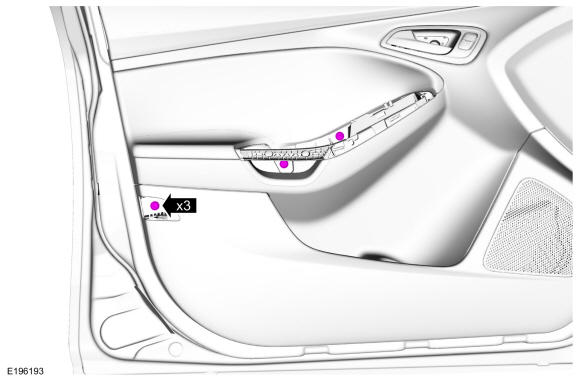

  6. Remove the door trim panel retainers.
    GFD269989Courtesy of FORD MOTOR COMPANY

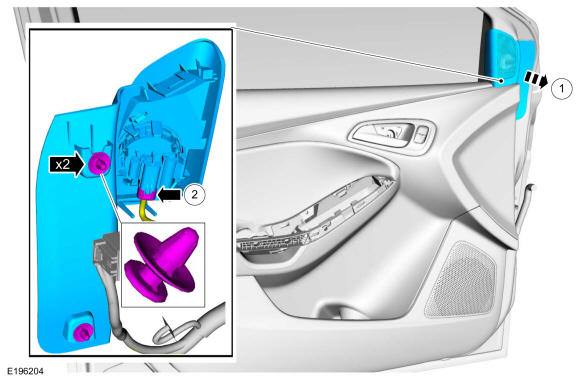

    1. Release the clips.
    2. If equipped, disconnect the speaker electrical connector and remove the sail panel.
    GFD269990Courtesy of FORD MOTOR COMPANY

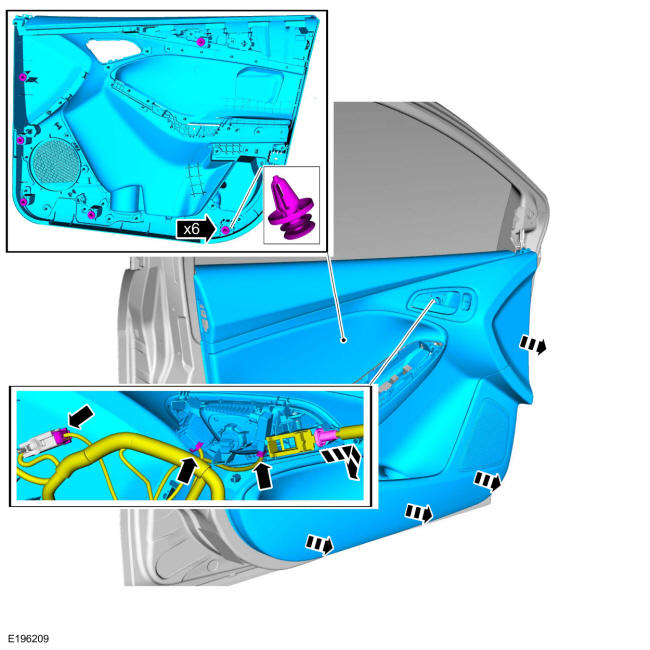

  8. Release the clips, disconnect the electrical connector, disconnect the latch cable and remove the front door trim panel.
GFD269991Courtesy of FORD MOTOR COMPANY
